To see what Civil 3D is, start from a familiar situation. The client asks for the alignment to move fifteen metres to the right. The engineer's first question is not how to move it, but how much work has to be redone.
If the road lives in AutoCAD as a set of separate drawings, the answer is nearly all of it. The plan, the profile, dozens of cross sections, the quantity tables, then the drainage drawings. If the road lives in a Civil 3D model, the answer is: move the alignment, then check.
That difference is the whole reason Civil 3D exists. This article explains it from that angle: how it differs from AutoCAD, how its objects stay linked, where earthwork quantities come from, and what you need to know before learning it.
What Civil 3D is
Autodesk Civil 3D is infrastructure design software running on top of AutoCAD. In short, it is AutoCAD plus a set of objects made for linear works and terrain.
The phrase "objects made for" is the important part. In AutoCAD a contour line is a curve. In Civil 3D the whole set of contours belongs to a surface, and that surface knows the elevation at any point. Likewise an alignment is not a polyline but an alignment, with stationing, horizontal curves and transition curves to standard.
Because the objects know what they are, the software can compute on them. And because they are linked, changing one thing updates whatever depends on it.
Infrastructure BIM versus building BIM compares the two fields more broadly and lists all eight jobs Civil 3D does on a road project. This article goes into the mechanism underneath, which is also what the Institute's Civil 3D course spends most of its hours building by hand.
The dynamic chain that makes Civil 3D what it is

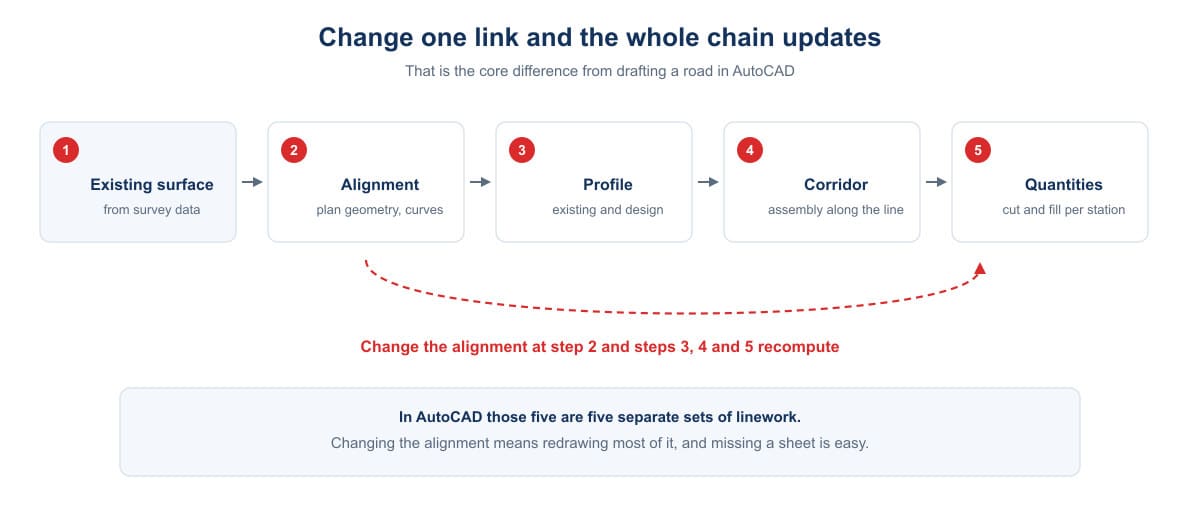

A road in Civil 3D is five links in a chain.
The existing surface is built from survey data: measured points, contour lines or a point cloud. This is the ground as it is, the base for everything after.
The alignment is the road in plan: straights, horizontal curves and transitions, with stationing running along it.
The profile holds two lines. The existing ground line is cut along the alignment, taken by the software straight from the surface. The design line is the levels the engineer sets, with vertical curves.
The corridor appears when a typical cross section is run along the alignment, following the design line. That section carries lanes, shoulders, ditches and side slopes. The result is a three-dimensional model of the road.
Quantities come last, computed from the difference between the corridor and the existing surface.
The point is the chain of dependencies. Move the alignment at link two and the profile re-reads the ground line, the corridor rebuilds along the new centreline, and the quantities recompute. The engineer does not have to remember to do each of those. The software knows what depends on what.
This is also where people fluent in AutoCAD struggle most. Not with the commands, but with having to build in the right order. Skip the surface and draw the alignment straight away, and there is no ground line to work from; the rest of the chain breaks.
Where earthwork quantities come from
This matters most to whoever prices the work and prepares payment applications, so it deserves its own section.

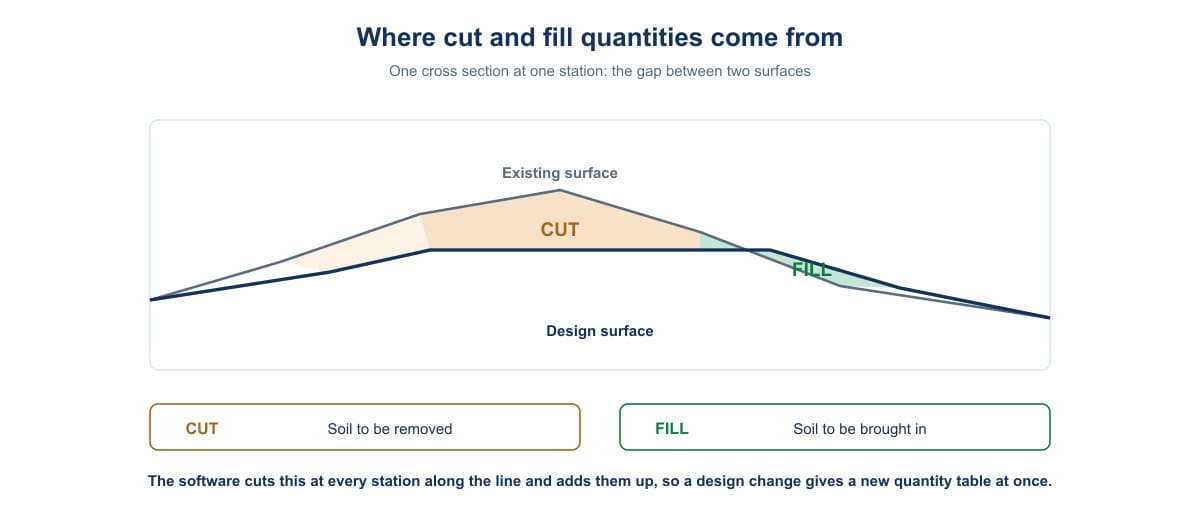

At each station along the road, the software takes a cross section. On it are two lines: existing ground and design surface. Where the design sits below the ground, soil has to be removed; that is cut. Where it sits above, soil has to be brought in; that is fill.
The area of each region multiplied by the distance between stations gives the quantity for that stretch. Add them along the road and you have the quantity for the works.
Three things are worth knowing about that number.
It is only as good as the existing surface. A surface built from sparse survey data, or missing the breaklines where the ground changes slope, produces wrong quantities while the table still looks perfectly normal.
It moves with the design. Raise or lower the design line by a few hundred millimetres and the quantities change immediately, which is why the software is also used to balance cut against fill and cut haulage costs.
And it is a geometric quantity. Turning it into a priced quantity still means splitting it by soil class, by material and by working conditions. What is quantity take-off? explains that boundary.
Civil 3D compared with AutoCAD and Revit
| AutoCAD | Civil 3D | Revit | |
|---|---|---|---|
| What you work with | Linework | Surfaces, alignments, corridors, pipe networks | Building elements |
| Suited to | Any 2D drawing | Linear works and terrain | Point works: buildings, plants |
| Changing the design | Redraw each drawing | Change one link, later links recompute | Edit the model, drawings follow |
| Quantities | Measured and added by hand | From the gap between two surfaces | Scheduled by element |
None of the three replaces the others. An infrastructure project usually runs all three: Civil 3D for the line and the terrain, Revit or Tekla for point works along it such as bridges, box culverts and substations, and Navisworks to bring them together for checking.
Bringing them together needs a shared format. For infrastructure that is IFC version 4.3, the first release with anywhere to describe an alignment. Earlier versions covered buildings only.
What you need before learning Civil 3D
You need to read road drawings first. Plans, profiles and cross sections are the language of this work; if you cannot read them, you cannot check the model you produce.
You need AutoCAD at a basic level, because Civil 3D runs on it and all the drafting is still AutoCAD drafting.
You do not need Revit first. The two have almost nothing in common in daily use, despite coming from the same company.
The Institute's 15-session Civil 3D course follows exactly the five links above, then extends into drainage networks, site grading with feature lines, cut-and-fill balancing and sheet production. Two points in the syllabus matter particularly for projects in Vietnam.
The first session covers setting up the VN-2000 coordinate system and local unit conventions. A small step, but get it wrong and the model sits offset from the survey data, and the error only shows when someone else federates it.
The last session covers infrastructure BIM thinking and the execution plan for road works. That leads into the BEP, which every project applying BIM has to produce.
Frequently asked questions
What is Civil 3D in one sentence?
Infrastructure design software running on AutoCAD, working through objects that know what they are, such as surfaces and alignments, and linking them so that changing one link recomputes the rest.
If I have Civil 3D, do I still need AutoCAD?
Civil 3D includes AutoCAD, so there is nothing extra to install. You do still need to know AutoCAD, because all the drafting and sheet work uses the same commands.
Can Civil 3D be used on building projects?
For the site works around the building, yes: grading, internal roads, drainage. The building itself belongs in Revit.
How long does learning Civil 3D take?
To model a complete road and produce the drawings, roughly one taught course plus the time to rebuild a project of your own. Fluency with drainage networks and complex grading takes a few more months of real work.
Can students use Civil 3D free of charge?
Yes, through Autodesk's education programme. Installing Civil 3D free for students walks through registration and installation step by step.
