Revit 3D View: 4 Ways to Orbit the Model

The Revit 3D view in Revit 2027: orbit with Shift and the middle button, ViewCube, the Orbit tool, pivot points, and fixes for a 3D view not showing.

  • TS. Nguyễn Mạnh Tuấn
  • 10 min read

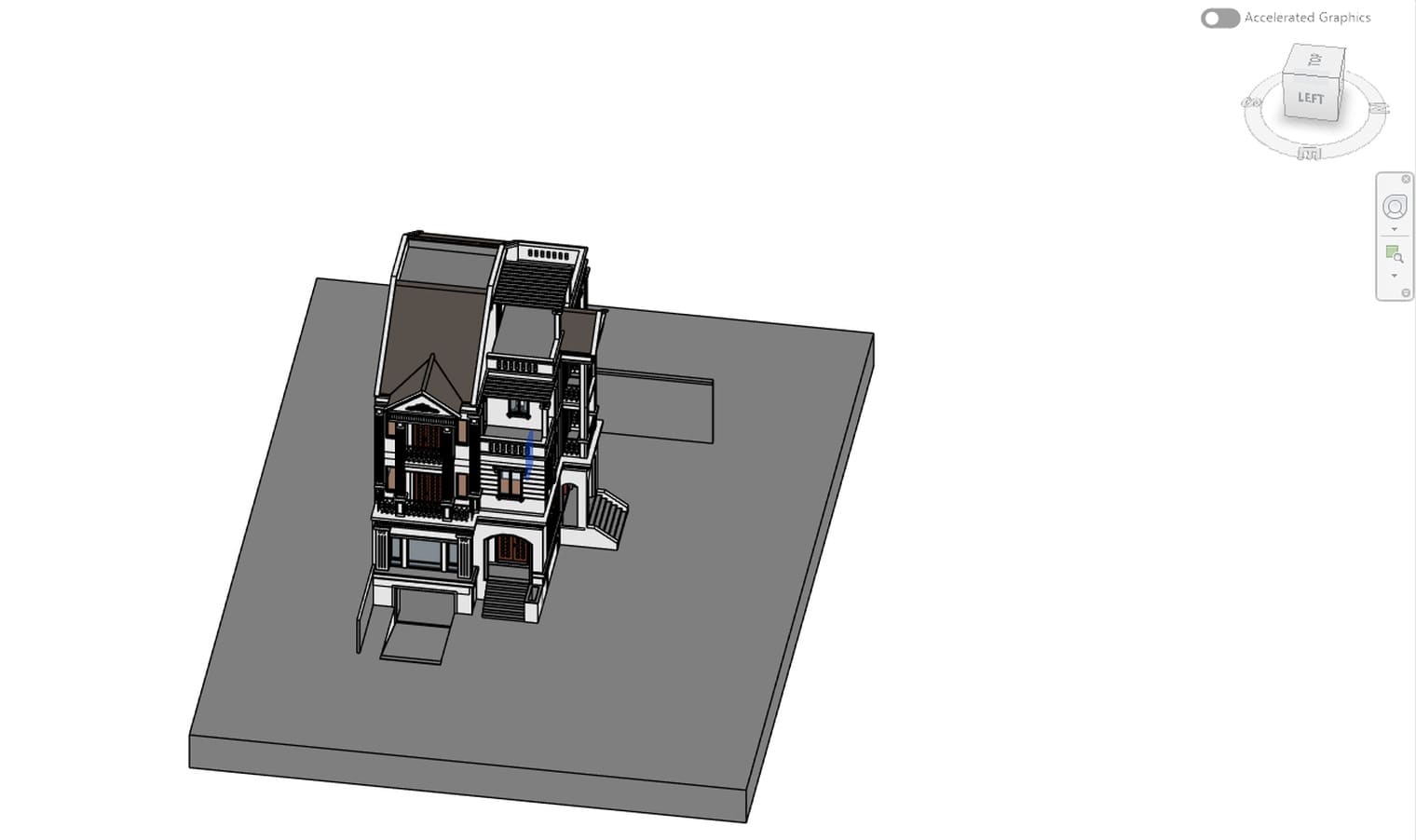

A villa model in the {3D} view of Revit 2027 after orbiting with Shift and the middle mouse button, with the ViewCube at the top right Photo: Screenshot of Revit 2027, sample model of the Institute of Information Technology in Civil Engineering

Orbiting a Revit 3D view changes only the direction you look at the model. The coordinates of every element stay the same. The Rotate tool is different: it turns the elements themselves in the project.

This article covers four ways to orbit a Revit 3D view in Revit 2027: Shift with the middle mouse button, the ViewCube, the SteeringWheels Orbit tool and the built-in orientation commands. It then explains the pivot point, locked views, and what to check when a 3D view is not showing the model. Modelling and presentation are taught in full in the Revit Architecture course.

The table below summarises the four ways to orbit the model; each is covered in detail in the sections that follow.

MethodHowBest when
1. Shift + middle buttonHold Shift, press and hold the wheel, dragQuick orbiting while modelling
2. ViewCubeClick a face, edge or corner; drag the cube or the compass ringJumping to standard viewing directions
3. SteeringWheelsPress F8, hold the Orbit wedge and drag; the Center wedge sets the pivotPrecise control of the pivot point
4. Orientation commandsOrient to View, Orient to a Direction, Orient to a PlaneLooking exactly along a plan, section or compass direction

Before you start: open a Revit 3D view

Plans, elevations and sections always look square onto a plane, so they cannot be orbited. Before trying the methods below:

  1. Click Default 3D View (the house icon) on the Quick Access Toolbar, or go to View › 3D View › Default 3D View.
  2. Revit opens the default view named {3D}.
  3. Type ZF so the whole model fits the window.

Other kinds of 3D view, such as perspective cameras, are covered in perspective in Revit.

Method 1: hold Shift and the middle mouse button

  1. Place the cursor in the middle of the drawing area.
  2. Hold Shift and press and hold the middle button (the wheel).
  3. Drag sideways to turn the model around the vertical axis; drag up or down to tilt the view.
  4. Release when the view is where you want it.

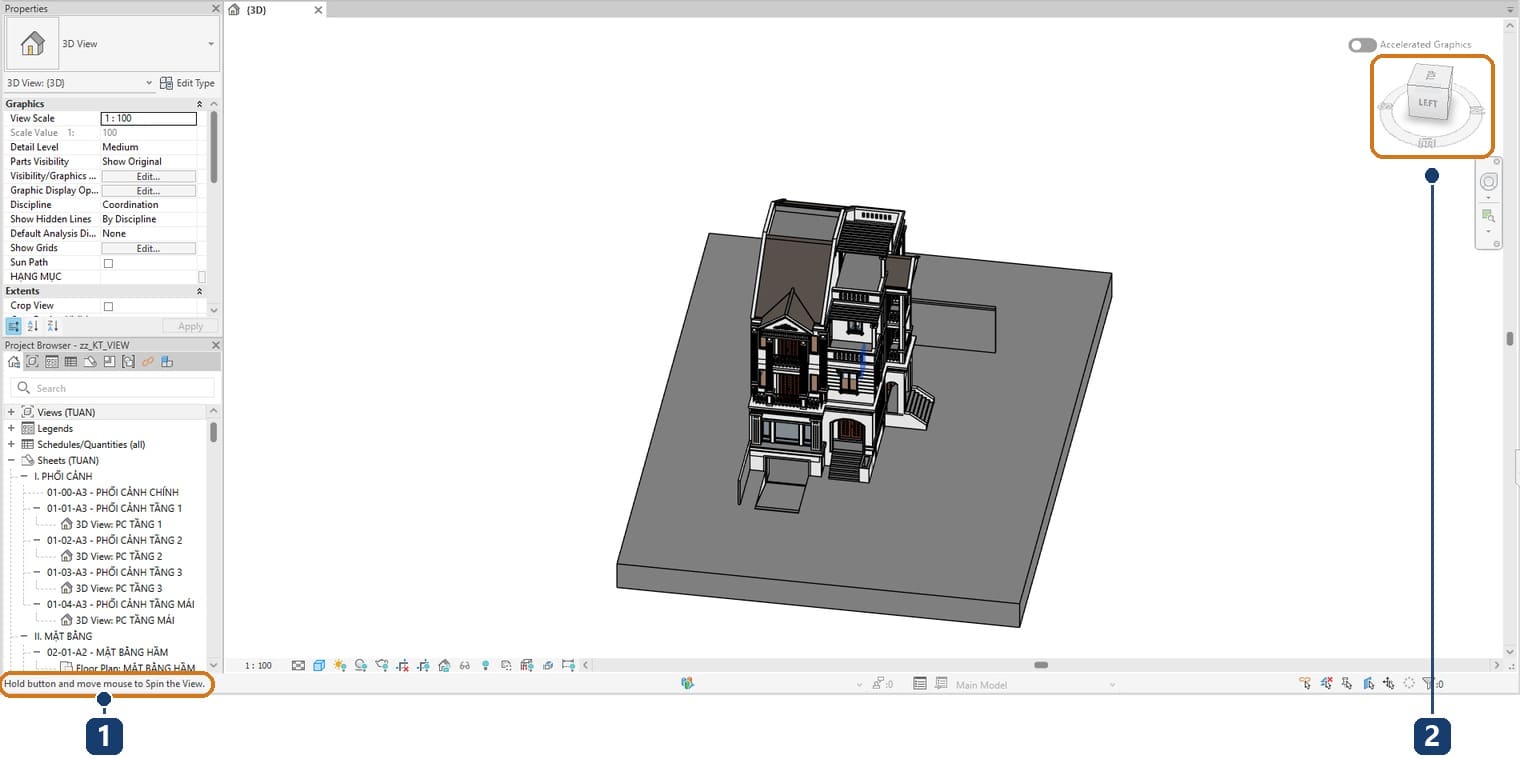

1 the status bar reads Hold button and move mouse to Spin the View while dragging. 2 the ViewCube turns with the new viewing direction Photo: Screenshot of Revit 2027, sample model of the Institute of Information Technology in Civil Engineering

While you drag, the status bar reads Hold button and move mouse to Spin the View. The ViewCube turns too, showing which side you are looking from. Scroll the wheel to zoom; hold the middle button without Shift to pan. All three are introduced in the Revit user interface.

The pivot point: why the model flies off the screen

According to Autodesk's help, Revit orbits the model around a pivot point. The pivot point is set in one of three ways (Autodesk: Change the Orientation of a Model).

MethodWhere the pivot point is
DefaultThe target point of the current view
Select objects before orbitingThe centre of the extents of the selected objects
The Center tool on SteeringWheelsA point on the model that you pick

The model usually flies off the screen because the pivot point is far from what you are looking at. A common cause is a linked CAD file on the wrong origin, kilometres from the building. Placing CAD on the right origin is covered in importing CAD into Revit.

To orbit around one detail:

  1. Type ZF to see the whole model again.
  2. Click the detail you want to inspect.
  3. Hold Shift and the middle button and drag. Revit orbits around the selection.

Method 2: the ViewCube

The ViewCube sits at the top right of a 3D view.

  1. Click a face of the cube, such as FRONT, to look straight from that side.
  2. Click an edge or a corner for an angled view.
  3. Drag the cube, or the compass ring around it, to orbit freely.
  4. Click the house icon next to the cube to return to the Home view.

Right-click the ViewCube for the full menu.

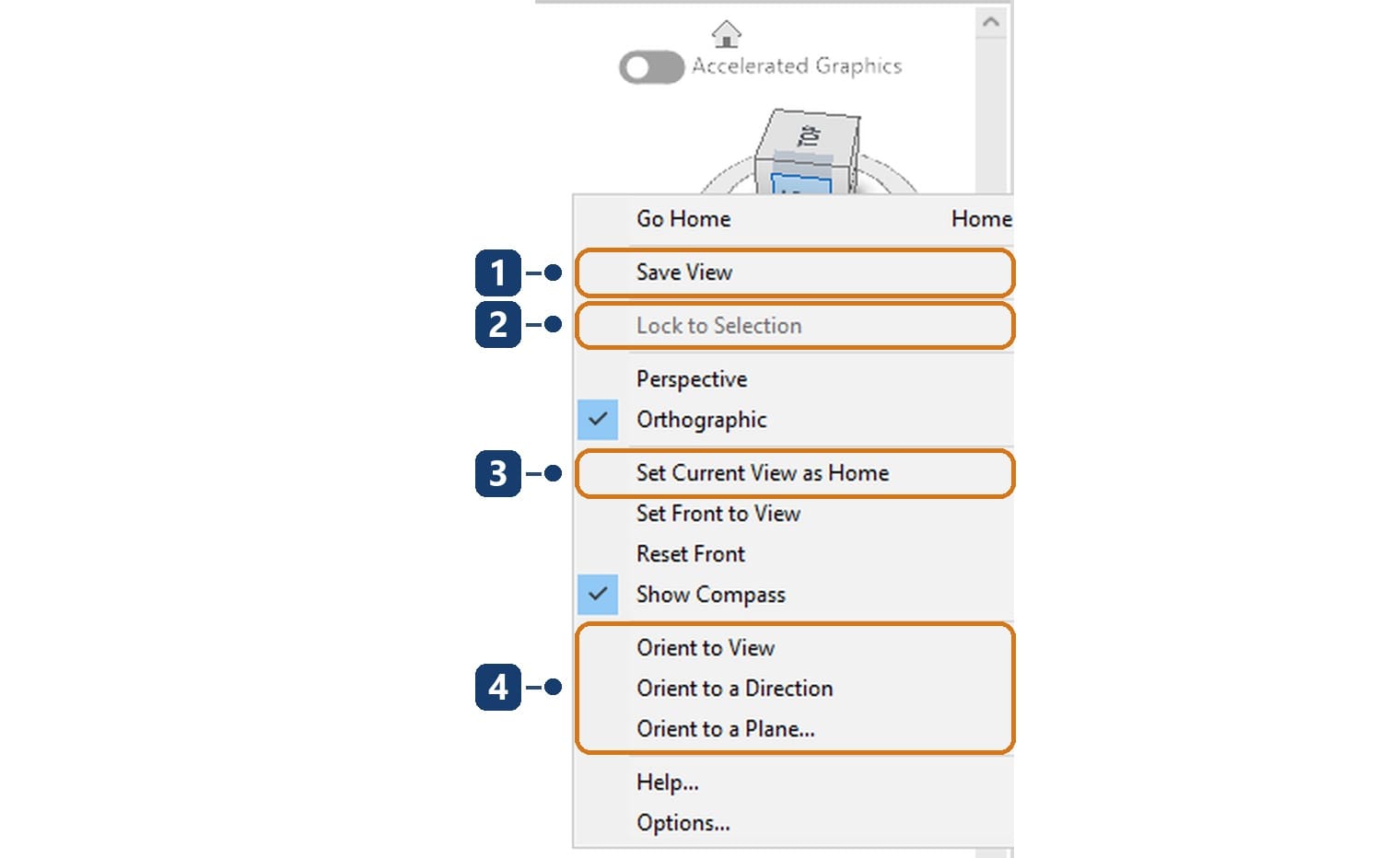

1 Save View saves the orientation as a new view. 2 Lock to Selection keeps the centre on the selected objects. 3 Set Current View as Home makes the current orientation the Home view. 4 Orient to View, Orient to a Direction and Orient to a Plane Photo: Screenshot of Revit 2027
No.ItemWhat it does, according to Autodesk
1Save ViewSaves the current orientation. It asks for a new name only when you are in the default {3D} view
2Lock to SelectionUses the selected objects as the centre when the ViewCube changes the orientation
3Set Current View as HomeDefines the Home view from the current view

Source: Autodesk: ViewCube Menu. Group 4 is covered in Method 4.

Method 3: the SteeringWheels Revit orbit tool

  1. In a 3D view, press F8. The SteeringWheels navigation wheel appears and follows the cursor.
  2. Move over the Orbit wedge, press and hold the left button, and drag to orbit.
  3. To change the pivot: press and hold the Center wedge, move over the point you want, a sphere marks the spot, then release.
  4. Press Esc, F8 or Shift+W to close the wheel.

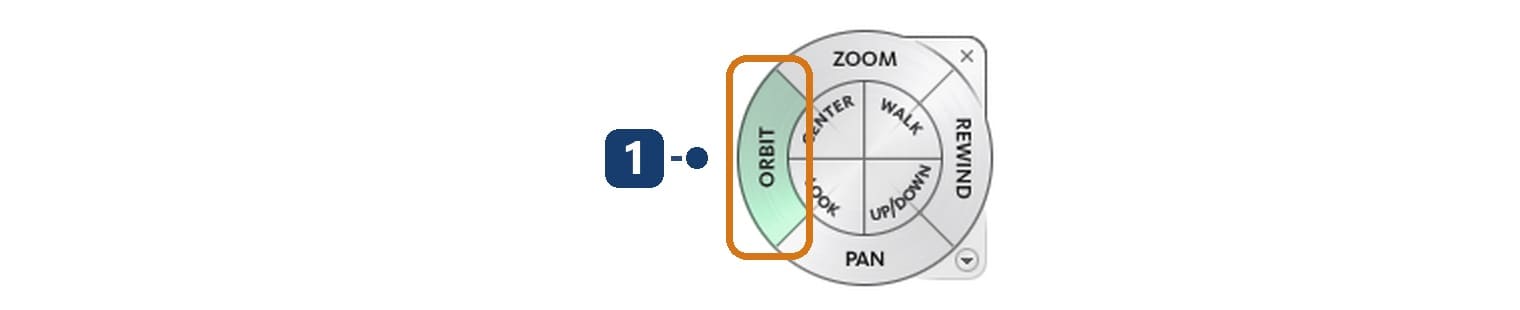

1 the ORBIT wedge, highlighted under the cursor. 2 Fit to Window and Restore Original Center on the right-click menu. 3 Orient to View and Orient to a Plane. 4 Options Photo: Screenshot of Revit 2027

The note Press ESC, F8 or Shift+W to exit, or right-click to display context menu appears next to the wheel. Autodesk notes that you cannot place a centre with the Center wedge while an element is selected (Autodesk: Define the Center of the Model View).

On the wheel's right-click menu, Fit to Window brings the whole model into view and Restore Original Center resets the pivot. Options contains Keep Scene Upright for Orbit Tool; with it on, the model does not roll over as you orbit.

Method 4: orient to a view or a set direction

The three orientation commands are in the last group of the ViewCube's right-click menu, number 4 in the image in Method 2. According to Autodesk's help:

CommandWhat it does
Orient to ViewMoves the camera to match an existing plan, elevation, section or 3D view and adds a section box matching that view's extents
Orient to a DirectionLooks from one of eight compass directions or from the top
Orient to a PlaneLooks square onto a plane you specify

Example, looking at one storey in 3D:

  1. Right-click the ViewCube, choose Orient to View, then the floor plan group.
  2. Pick the plan of the storey you want.
  3. Revit places the camera on that plan and cuts away everything above it with a section box.
  4. Hold Shift and the middle button to tilt the cut storey.
  5. To remove the cut, clear Section Box in Properties.

Lock the view once the angle is right

An angle placed on a sheet should be locked so a stray orbit cannot move it.

  1. Click the house-with-padlock icon on the View Control Bar.
  2. Choose Save Orientation and Lock View.
  3. In the default {3D} view, Revit opens the Rename Default 3D View To Lock dialog. Type a new name and click OK.
  4. To orbit again, open the same menu and choose Unlock View.

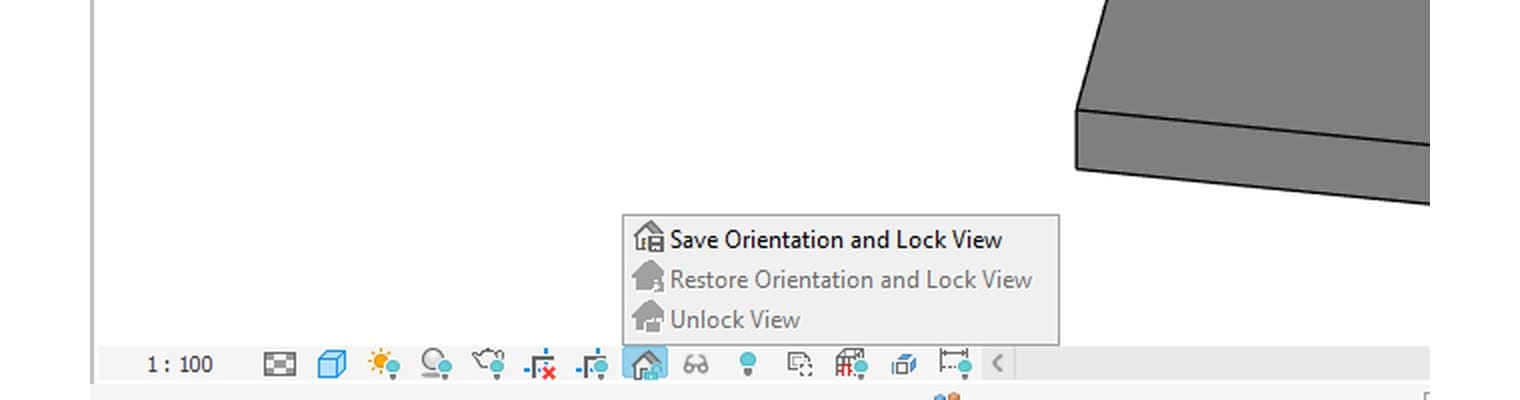

The lock menu with Save Orientation and Lock View, Restore Orientation and Lock View, and Unlock View Photo: Screenshot of Revit 2027

Once a view is locked, Shift with the middle button no longer orbits. Revit shows This command is disabled while the View is locked, and Locked Orientation is checked in Properties.

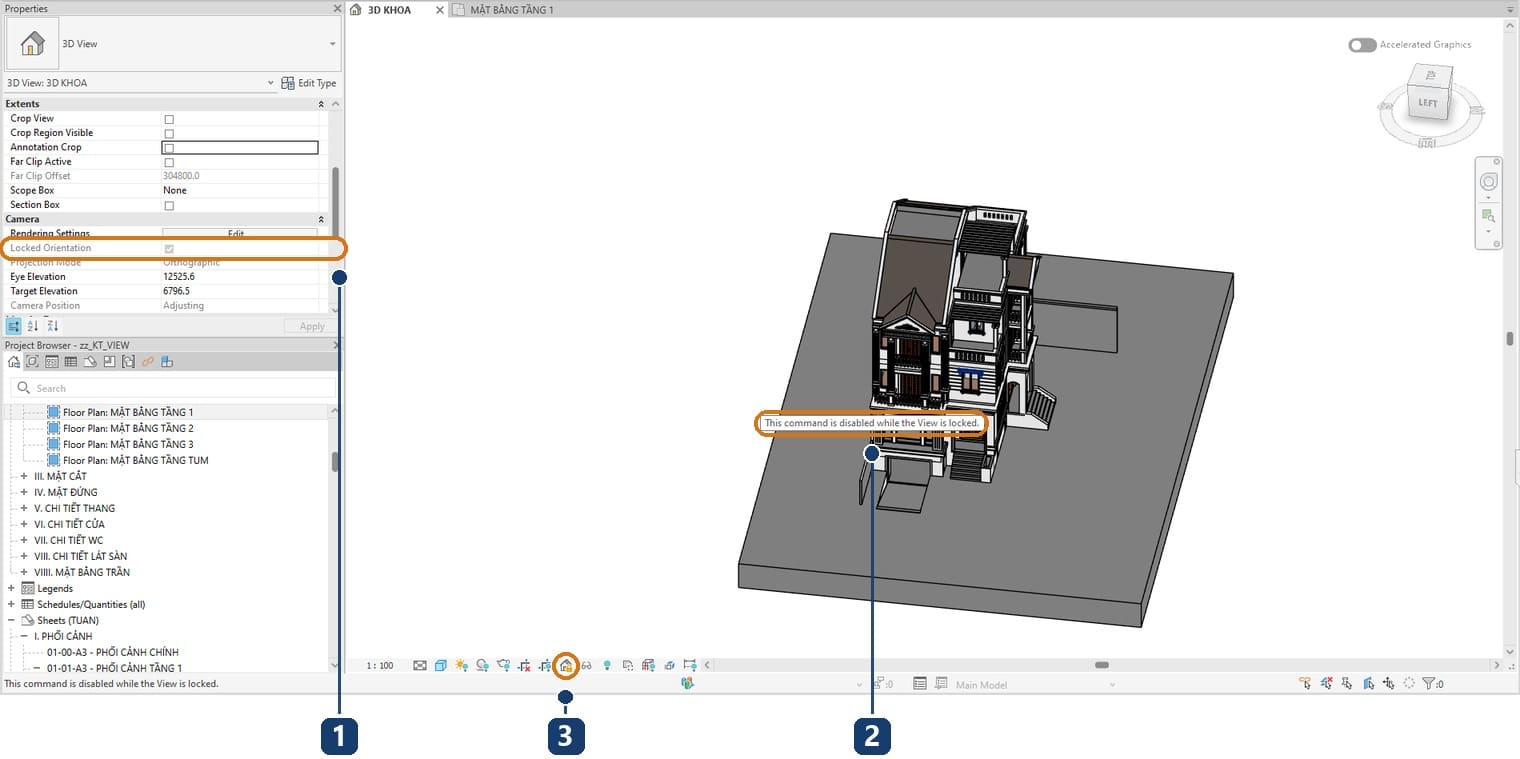

1 Locked Orientation is checked. 2 the message This command is disabled while the View is locked when you try to orbit. 3 the lock icon on the View Control Bar Photo: Screenshot of Revit 2027, sample model of the Institute of Information Technology in Civil Engineering

Revit 3D view not showing the model: check in this order

An empty or half-empty 3D view is usually caused by a setting in the Extents or Camera group of Properties.

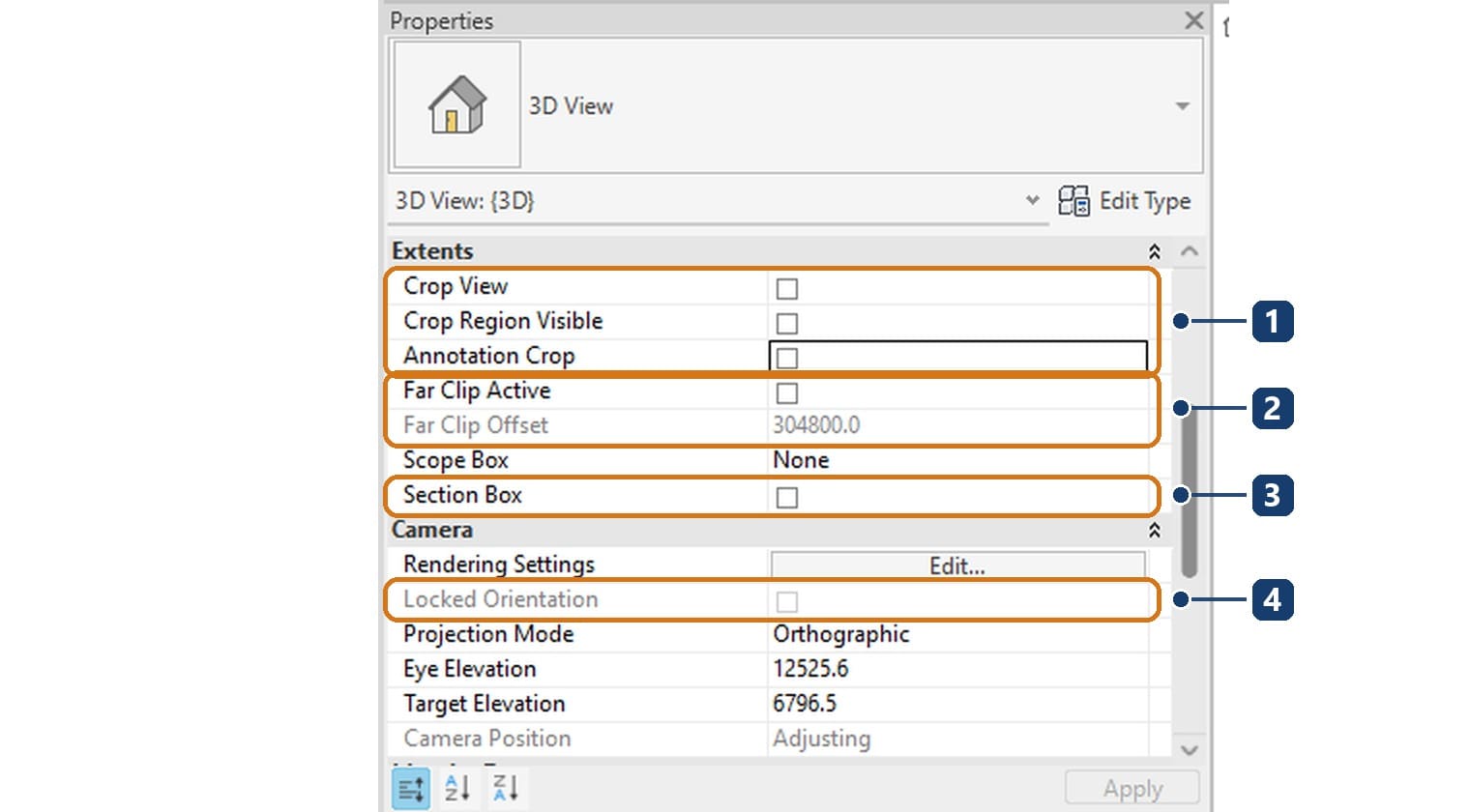

1 Crop View, Crop Region Visible and Annotation Crop. 2 Far Clip Active and Far Clip Offset. 3 Section Box. 4 Locked Orientation Photo: Screenshot of Revit 2027
SymptomCauseFix
Nothing visible after orbiting or zoomingThe model is outside the frameType ZF, or use Fit to Window on the SteeringWheels menu
Only a small block of the building showsSection Box is on and shrunkSelect the section box and drag its handles out, or clear Section Box
The image is clipped by a rectangleCrop View is onClear Crop View; see crop view in Revit
Distant parts disappearFar Clip Active is onClear it or increase Far Clip Offset
A whole category is missingTurned off in Visibility/Graphics or hidden in the viewOpen VV, use Reveal Hidden Elements; see hiding elements in Revit
New or demolished elements are missingThe view's Phase and Phase FilterCheck the two lines in the Phasing group
A teammate's part is missingA workset is closed or hidden in the viewOpen the workset; see central and local files

The first two rows cover most cases. A section box is not limited by the view's crop region, so both can be on at once without affecting each other (Autodesk: Change the Extents of a 3D View).

Frequently asked questions

What is the keyboard shortcut for orbit in Revit?

There is no dedicated orbit shortcut: searching for orbit in the Keyboard Shortcuts dialog (type KS) returns no command. The fastest way is Shift with the middle mouse button. F8 opens SteeringWheels, which has the Orbit wedge. The six navigation wheels are listed in Keyboard Shortcuts without shortcuts, so you can assign your own.

Why does Shift with the middle button not orbit?

Three possibilities: you are in a plan or section, the 3D view is locked, or the mouse driver assigns the middle button to something else. Open {3D}, choose Unlock View, then check the mouse's middle-button setting.

How do I orbit around a small detail without losing it?

Select the detail first, then orbit. Revit uses the centre of the selected objects' extents as the pivot point.

Does orbiting change the model?

No. Orbiting changes only that view's direction. To turn the element itself, use Rotate, shortcut RO.

In short, every Revit 3D view orbits around a pivot point. Set the right pivot, lock the angle once it is right, and check the Extents group when a view is empty, and you will not get lost in a 3D model.
