When a design firm moves to Revit, the next question is usually whether to move to Robot Structural Analysis as well, so that the structural model and the analysis model are connected. It is a fair question, because structural engineers in Vietnam are so used to ETABS that they treat it as the default.
This article answers four things directly: what Robot is, where it wins, where ETABS is still stronger, and how a firm already on Revit should decide. Anyone not yet familiar with the tall-building workflow should first read the eight-step workflow with ETABS and SAFE, or take the tall building design course.
What Robot Structural Analysis is
Autodesk Robot Structural Analysis Professional is Autodesk's finite element structural analysis and design software. It handles frames, plates, shells, steel, concrete and timber; static, dynamic and non-linear analysis; and member design to several code families, Eurocode among them.
In raw analytical capability Robot sits alongside general-purpose packages such as SAP2000, and is perfectly capable of tall buildings in the way ETABS is. The three more familiar programs are compared in how ETABS, SAP2000 and SAFE differ.
What has made Robot Structural Analysis increasingly discussed is not the solver. It is where it sits: same manufacturer as Revit, and the program Revit Structure links to directly.
Its biggest advantage: a Revit link that comes built in, from the same manufacturer

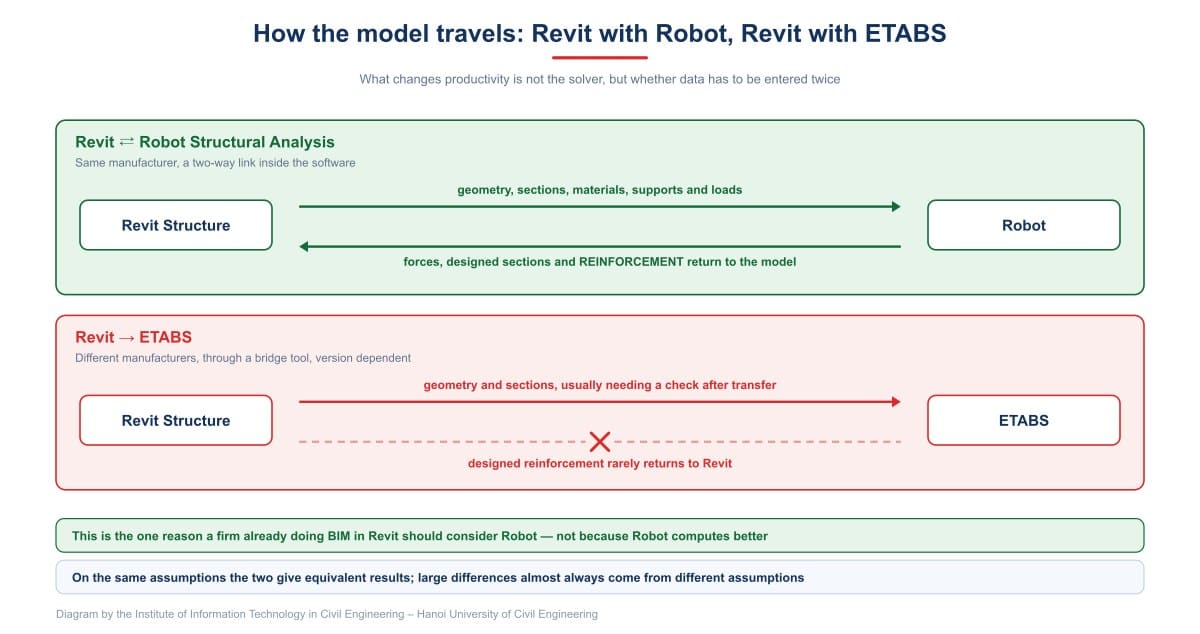

In a structural BIM workflow the engineer builds the physical model in Revit Structure — columns, beams, slabs and walls at real dimensions. Analysis needs a different model: member axes, plate mid-surfaces, supports and loads. Revit generates that analytical model from the physical one, and Robot accepts it in both directions.
The outward trip carries geometry, sections, materials, supports and the loads already assigned in Revit. The engineer does not build the model a second time. The return trip carries forces, the chosen sections, and for beams, columns and spread footings the designed reinforcement as well, created as rebar inside the Revit model according to Autodesk's integration documentation.
One thing many comparisons get wrong needs saying plainly: ETABS also links to Revit in both directions. CSI's CSiXRevit plugin does it, and from ETABS v21 onwards reinforcement for beams, slabs, columns and walls transfers to Revit too. The difference is not whether a return trip exists, but how it is delivered.
- Robot: the link installs with the software and comes from Revit's own manufacturer, so releases move in step. There is no third layer of software to maintain.
- ETABS: CSiXRevit must be installed to match each Revit release, data passes through an intermediate file, and reinforcement transfer needs ETABS v21 or later.
For a firm already doing BIM the practical difference is one fewer layer to maintain and one fewer version pair to keep aligned. That is a real advantage, but an operational one, not a difference in capability.
That is why the Institute's Robot Structural Analysis course ends with pile foundations, the overall design report and the Revit connection. For someone learning Robot, the connection is the point, not a side feature.
A second advantage few people count: no extra licence
Robot is included in Autodesk's AEC Collection. A firm that bought the collection in order to use Revit therefore already owns Robot and pays nothing more for it. ETABS, by contrast, comes from a different manufacturer and has to be bought separately.
For a firm weighing the move, that belongs in the arithmetic: the cost of trying Robot is close to zero, leaving only the cost of learning it and running the parallel trial. What the AEC Collection contains, and what it costs, is set out in what a Revit licence costs.
Where ETABS is still stronger
To be fair, for tall buildings in Vietnam ETABS holds three advantages Robot has not matched.
Tools built for tall buildings. Defining storeys, rigid diaphragms, automatic wind and seismic loads, storey drift, results plotted by storey — ETABS does all of this naturally because it was designed for buildings. Robot can do it, but with more setup.
The pairing with SAFE. Slab design with punching shear, long-term deflection and post-tensioning, and foundation design for rafts and pile caps on elastic support, all take loads from ETABS smoothly. Robot has plate analysis and elastic supports, but the slab and foundation workflow is less specialised.
Community and design review. Most engineers, lead designers and reviewing bodies in Vietnam know ETABS, so an ETABS submission is read and checked quickly. Robot files are accepted, but a reviewer may ask for more explanation. There is also far more Vietnamese material and training for ETABS, which matters when a junior engineer is stuck at ten at night and needs an answer before the morning.
None of these three is about the mathematics. They are about how quickly a team, a reviewer and a recruiter recognise what they are looking at, which is exactly the kind of advantage that does not show up in a feature comparison.
A decision table
| Situation | Choose | Why |
|---|---|---|
| Building design firm, not yet on Revit or using it only for architecture | ETABS and SAFE | Familiar workflow, easy review, strong slab and foundation pair |
| Firm already doing structural BIM in Revit, wanting one model throughout | Robot, keeping ETABS for checking | Built-in link from the same manufacturer, licence already in the AEC Collection |
| Foreign-funded project, Eurocode, consultant on Autodesk | Robot | Code family and formats match the partner |
| Industrial buildings, steelwork, general structures | Robot or SAP2000 | Both are general purpose and strong on steel |
| Concrete towers, complex slabs, rafts and pile caps | ETABS and SAFE | Specialised strength |
| Structural student on a coursework project | ETABS or SAP2000 | Teachers and classmates use the same tool |
| Firm doing both Revit work and review for many partners | Both, one per task | Robot for its own BIM projects, ETABS to read partners' files |
The rule in one sentence: choose by the firm's workflow, not by which program is better. The two give equivalent results under the same assumptions. What changes productivity is what happens before and after the solve: how the model gets in, and what comes back out into the drawings.
Replace, or run both

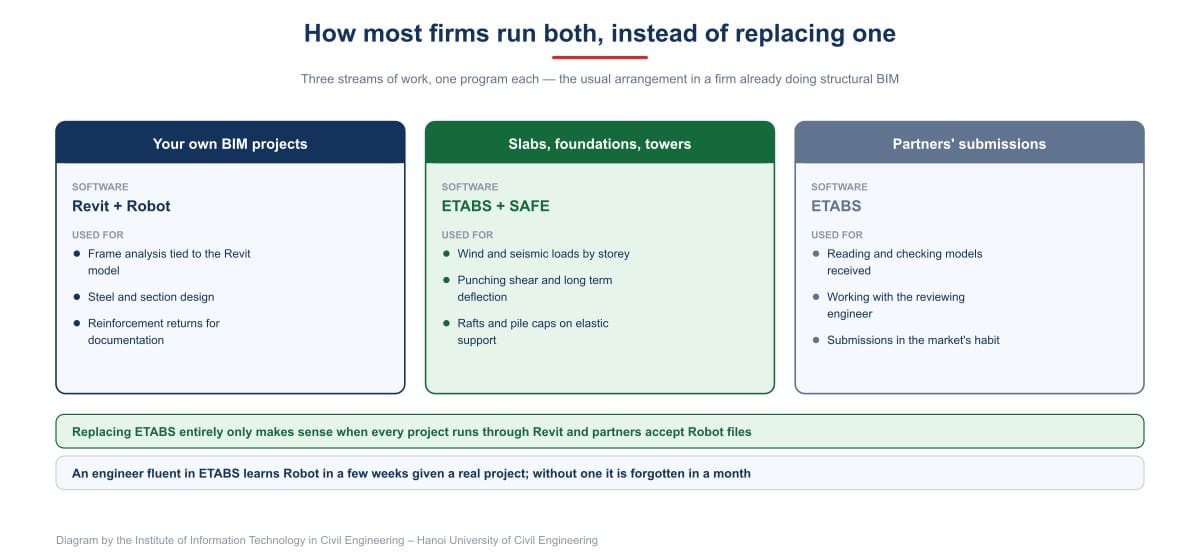

In practice very few firms drop ETABS entirely. The usual arrangement is to run both, one program per stream of work.
This split resolves the tension between two needs: wanting one model throughout your own projects, while still reading and submitting files the way the market expects. Full replacement only makes sense when every project runs through Revit and partners accept Robot files.
What a firm should do before switching
Changing analysis software is a bigger decision than changing drawing software, because it touches design liability. Four things to do first.
- Run both on one real project. Analyse the same building in both, then compare forces, displacements and modes once the assumptions are aligned. This is the only way an engineering team comes to trust the results, and it is also an exercise in the Institute's course.
- Check the load definitions against Vietnamese codes. Robot needs wind and seismic loads set up to the national standard. The Institute's Robot course devotes a section to structural layout and load determination to TCVN.
- Decide explicitly: replace or supplement. Most firms keep ETABS and SAFE for slabs, foundations and review, and use Robot for frame analysis tied to Revit.
- Train against a live project. An engineer fluent in ETABS picks up Robot in a few weeks given a real project. Without one it is forgotten in a month. In-house Revit and BIM training covers how to organise training around a project.
For an individual engineer the advice is shorter: Robot is a valuable additional skill at a firm doing structural BIM and on foreign-funded work, but it does not yet replace ETABS on a Vietnamese CV. Learn ETABS first, and Robot when the job calls for it.
Frequently asked questions
What is Robot Structural Analysis in one sentence?
Autodesk's general-purpose structural analysis and design software, linked two ways with Revit Structure, usable for buildings, steel frames, plates and shells across several code families.
Can structural analysis be done inside Revit?
Revit builds the analytical model and lets you assign loads, but the solving happens in Robot or another analysis package. Revit does not replace analysis software.
Do Robot and ETABS agree?
They agree within a small tolerance when the assumptions match on rigid diaphragms, joint rigid zones, cracked stiffness and meshing. Large differences almost always come from different assumptions, which is what to check before concluding one program is wrong. The usual culprits, in order, are the diaphragm assumption, the stiffness modifiers applied for cracking, and the mass source used for the dynamic analysis.
How long does Robot take to learn?
An engineer fluent in ETABS or SAP2000 needs a few weeks with guidance plus a trial project. A beginner should learn finite elements and how to set up an analytical model first, as with any analysis software.
Should a student learn Robot straight away?
Not first. Become fluent in one analysis package, usually ETABS or SAP2000, then learn Robot when working in a Revit environment.
