What Revit renders well, and when render plugins earn their keep
Revit ships with its own renderer; nothing extra has to be installed. The Render button sits on the View tab, Presentation panel.
The Render button is greyed out while a plan view is active. Open a 3D view and it lights up. This costs beginners more time than anything else: hunting for a button that is there, but disabled because the wrong view is open. Creating and aiming 3D views is covered in perspective in Revit.
It is worth being direct about what the built-in renderer does well and what it does not.
| Task | Built-in Revit renderer | Better in other software |
|---|---|---|
| Design check images, internal circulation | Well suited. Runs on the open model | Not needed |
| Exterior images for client approval | Workable, especially daylight scenes using real sun angles | Consider it for large batches |
| Interior images with many lights, high quality | Possible but slow and awkward to tune | Move to a dedicated renderer |
| Set dressing, people, planting, post-production | Not available | Other software required |
The strongest argument for the built-in renderer is that nothing leaves the model. Change the model, render again, and the image follows, with no export step to get out of sync.
Once the work leans heavily towards imagery, the usual route is to take the model into dedicated visualisation software. The article what architectural visualisation is compares those paths and separates "good enough to present" from "indistinguishable from a photograph".
Revit materials: the Graphics tab and the Appearance tab
By this stage the geometry is right but the substance is not. Walls are still default grey and floors are still flat.
The tool sits on the Manage tab, Settings panel, button Materials. The Material Browser opens with a search box and the project material list on the left, and five tabs on the right.
| Tab | Contents |
|---|---|
| Identity | Name, description, class, manufacturer, cost, keynote |
| Graphics | How the material appears on screen and in printed drawings |
| Appearance | How the material appears when rendered. This is the tab for this article |
| Physical | Mechanical properties, used in structural analysis |
| Thermal | Thermal properties, used in energy analysis |
The Cost field on the Identity tab is the source of the Material: Cost column in a quantity schedule, covered in schedules in Revit.
| No. | Component | What it means |
|---|---|---|
| 1 | Use Render Appearance | The most important box on this tab. Tick it and the shaded colour on screen comes straight from the render material, while Color and Transparency grey out |
| 2 | Surface Pattern and Cut Pattern | The hatch drawn on faces and on cut surfaces. This is the drawing side of the material |
Use Render Appearance is the bridge between the two tabs. Ticked, the screen view and the rendered image share one colour. Cleared, you can set a separate screen colour, which helps when construction layers need distinguishing by convention. The drawing side of patterns is covered in hatching in Revit.
| No. | Component | What it means |
|---|---|---|
| 1 | Preview | A cube covered in the material. It can be swapped for a sphere, a wall and other shapes to suit the material type |
| 2 | Parameters | The asset parameters: Image points at the texture file, Reflectance reads 0.03, and Roughness points at a separate roughness image |
| 3 | Three toggles | Translucency for translucent materials; Emissivity for self-illuminating ones; Relief Pattern for a bumpy surface |
Reflectance runs from 0 to 1. Timber at 0.03 is very matt; glass and polished metal sit at the other end of the scale. After the texture image itself, this parameter affects the result more than any other.
Roughness accepts either a number or an image file. An image means roughness varies point by point across the surface, so timber has glossy and matt patches instead of one uniform sheen.
To edit a material taken from the library, duplicate the asset first, using the small button at the top right of the Appearance tab. Edit it directly and every other material sharing that asset changes too.
The Revit Texture Editor and texture scale: what gives an image away
Double-click the Image field on the Appearance tab to open the Texture Editor. This decides whether an image reads as real or fake, and it is the step most often skipped.
| No. | Component | What it means |
|---|---|---|
| 1 | Position | Offset shifts the image in two directions and Rotation turns it. The chain button locks the two Offset fields together |
| 2 | Scale | Sample Size is the real-world size of one tile of the image. The sample material here reads 457.20 mm wide and 914.40 mm high |
| 3 | Repeat | How the image repeats in each direction, preset to Tile |
Sample Size needs changing almost every time. For 600x600 wall tiles, type 600 in both fields. For 1200x150 timber boards, type 1200 and 150. Leave it and a single tile covers a whole wall, which nobody mistakes for a real photograph.
The figures 457.20 and 914.40 mm are exactly 18 and 36 inches. The entire material library shipped with Revit is set out in imperial units. Any material taken straight from the library therefore needs rescaling to the sizes actually sold locally.
The quickest check needs no render at all: set a perspective view looking closely at a stretch of wall, switch the display style to Realistic, and compare a tile against the height of a door. A wrong scale is obvious immediately.
The Rendering dialog: four groups of settings
Rendering is the last step: Revit recomputes lighting, materials and shadows to produce a photographic image.
| No. | Component | What it means |
|---|---|---|
| 1 | Render button and Region | Render runs the job. Region limits the area computed, useful for testing one corner rather than the whole image |
| 2 | Output Settings | Resolution offers Screen or Printer. Screen matches the current drawing area exactly, here 1429 x 799 pixels and 4.4 MB |
Because Screen takes the drawing area as it is, maximising the Revit window before rendering produces a larger image. Collapsing the Properties palette and Project Browser adds a few hundred pixels more. For a printable image, choose Printer and set a resolution in dots per inch.
The same four groups also open from the Edit button on the Rendering Settings row in the view's Properties palette. Two routes, one set of settings.
| No. | Component | What it means |
|---|---|---|
| 1 | Quality | The quality level, which governs run time |
| 2 | Lighting | The lighting scheme and sun setting |
| 3 | Background | The background for the rendered image only |
| 4 | Image | The Adjust Exposure button |
These settings are stored per view, and can be carried in a view template to apply across many 3D views at once.
Revit render quality against measured run times
The first four are presets. Custom tunes settings for this view alone, and Edit opens the detailed dialog.

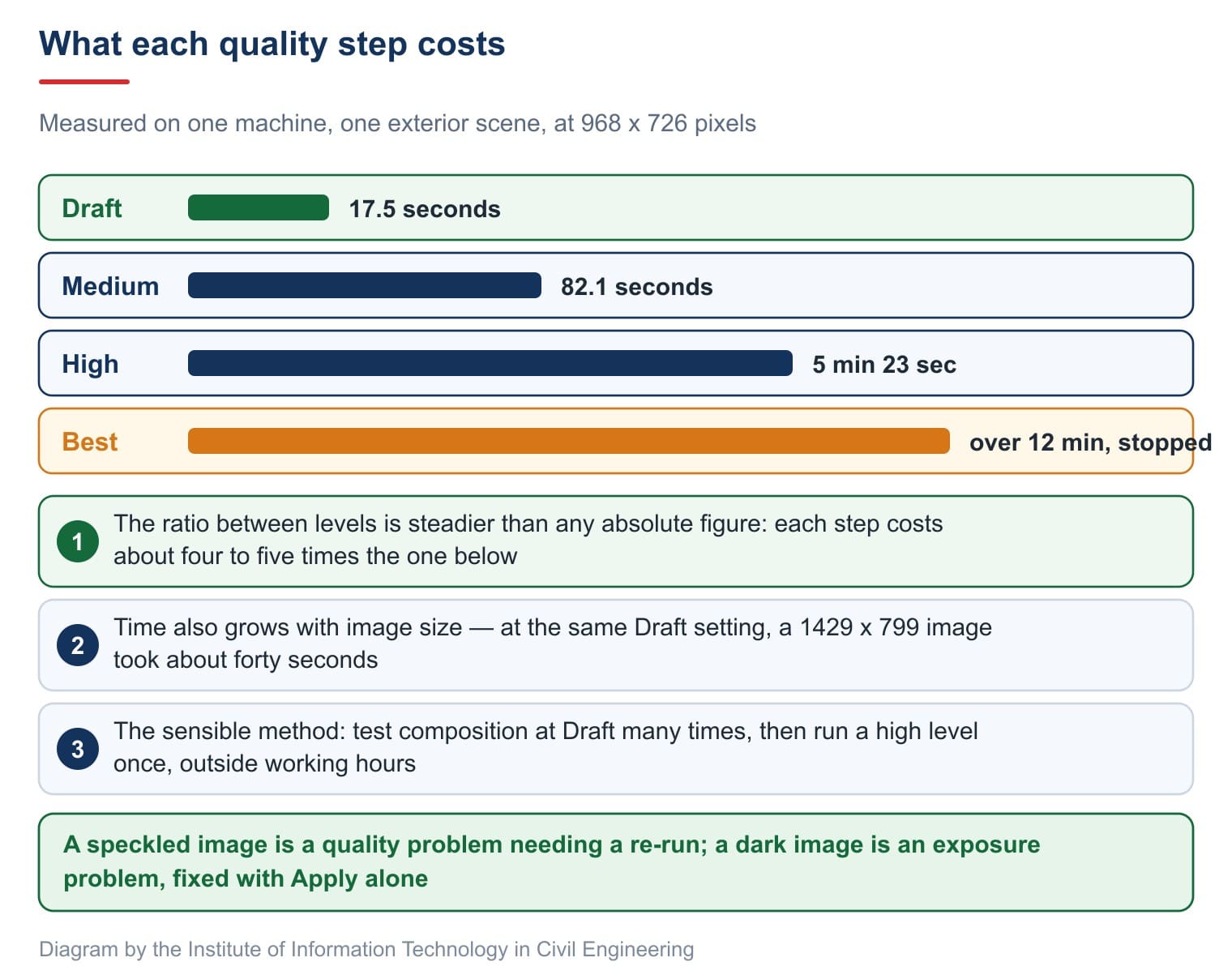

Run time is what you need before promising anything to anyone. The table below was measured on one machine, at 968 x 726 pixels, on an exterior scene with trees, grass and shadows.
| Level | Run time | Notes |
|---|---|---|
| Draft | 17.5 seconds | Enough to judge composition and light |
| Medium | 82.1 seconds | Close to five times Draft |
| High | 323.3 seconds, or 5 minutes 23 seconds | Four times Medium again |
| Best | Still unfinished after twelve minutes | Had to be stopped; the machine was barely usable meanwhile |
Absolute figures depend on the machine, but the ratios hold: each step costs roughly four to five times the one below. Remember the ratio rather than the number.
Time also grows with image size. At the same Draft setting but a larger image, 1429 x 799 pixels, the same machine took about forty seconds. Autodesk describes what separates the levels on About the Render Quality Setting.
The working method follows from that: test composition and lighting at Draft, possibly twenty or thirty times. Only once everything is settled, run once at a high level, and run it over lunch or at the end of the day.
| No. | Component | What it means |
|---|---|---|
| 1 | Stop button | Halts the render. A confirmation dialog then asks Yes or No |
| 2 | Close dialog when rendering is complete | On by default. Clear it and the dialog stays open afterwards, which helps when warnings need reading |
Lighting, background and Revit exposure control
The three Exterior schemes are for exterior images and the three Interior schemes for interiors. Within each set, Sun only computes daylight alone, Artificial only computes lamps alone, and Sun and Artificial computes both.
An interior image must use an Interior scheme. Pick an Exterior one by mistake and Revit skips the repeated bounces of light inside a room, leaving the image almost black.
Any scheme that uses daylight still takes its sun direction from the Sun Settings dialog, so the project location has to be correct first.
The five Sky entries differ in cloud cover. Color is a flat colour. Image is a backdrop photograph. Transparent leaves the background empty for compositing elsewhere. This background is entirely separate from the one in Graphic Display Options: one belongs to the rendered image, the other to the screen and printed views.
| Field | Default value and meaning |
|---|---|
| Exposure Value | 14.00. Lowering it brightens the image. The first field to reach for when an image is dark |
| Highlights | 0.25. Controls the brightest areas and guards against blown-out white |
| Shadows | 0.20. Raising it brings out detail inside shadow |
| Saturation | 1.00. Colour intensity. Too high and the image looks artificial |
| White Point | 6500.0 kelvin. Lower it for a cool blue cast, raise it for a warm one |
This dialog works after the render has finished, and clicking Apply updates the image immediately with no re-run. That is the single biggest time saving available: render once, then adjust brightness as often as you like. Autodesk explains how these values are stored with the view on Adjust the Exposure of a Rendered Image.
Cloud rendering and common errors
Machines in many small offices cannot run a high quality setting during working hours. Cloud Rendering sends the view to Autodesk servers, and Render Gallery opens the page where finished images are viewed and downloaded.
The advantage is that your machine is free the moment the job is sent. Several views can go at once while you carry on working. Two conditions come with it: the project must be saved before sending, and the signed-in Autodesk account must be entitled to the service, with jobs counted against that account. Check the entitlement before committing to a deadline.
| Symptom | Cause and fix |
|---|---|
| Render button greyed out | A 2D view is active. Open a 3D view and try again |
| Interior image comes out black | An Exterior lighting scheme was chosen. Switch to an Interior one |
| Exterior image too dark | An exposure problem. Lower Exposure Value; no re-run needed |
| One tile covers a whole wall | Sample Size in the Texture Editor was never changed |
| Speckled image, ragged shadow edges | The signature of a low quality level. Re-run at a higher one |
| Render never finishes | Quality too high for the machine. Stop, drop one level and run again |
The last two are easily confused. A speckled image is a quality problem, cured by re-running higher. A dark image is an exposure problem, cured in Exposure Control with no re-run at all. Mixing them up costs hours of pointless rendering.
Try it: from material to an exported image
A forty-minute exercise. Work on a model that already has a perspective view.
- Open Manage then Materials. Find the material on the external wall and note its name and class.
- Go to the Appearance tab. Note the texture file name and the Reflectance value.
- Double-click the Image field to open the Texture Editor. Note the current Sample Size.
- Change Sample Size to the real size of the material you intend to use, for example 600 x 600 for wall tiles.
- Look at the view again in Realistic and note what changed.
- Go to View then Render. Note the Width, Height and file size the dialog reports.
- Run once at Draft and time it. Note the result.
- Run again at Medium and time it. Work out the ratio between the two, then compare it against the table above.
- Open Adjust Exposure, lower Exposure Value by two and click Apply. Note what happens and whether a re-run was needed.
- Click Save to Project, name the image, find it in the Project Browser, then click Export to write a file.
Step 8 is the one worth doing properly: the ratio measured on your own machine is the number to quote in a programme, not the one in any published table.
| No. | Component | What it means |
|---|---|---|
| 1 | Save to Project and Export | Both greyed out until a render completes. Save to Project stores the image in the project file under Renderings; Export writes an external image file |
| 2 | Show the model | Toggles between the rendered image and the model. Before a render it reads Show the rendering |
Use Save to Project before Export. An image stored in the project travels with the file, so anyone opening it sees the approved image without having to ask for it again.
Frequently asked questions
Does rendering in Revit need any extra software?
No. The renderer is built in and runs on whichever 3D view is open. External software is only needed once the work leans heavily towards image quality and post-production.
An interior render comes out black. What is wrong?
Most often an Exterior lighting scheme was selected. Switch to an Interior scheme; if it is still dark, lower Exposure Value.
Why does one tile cover an entire wall?
Because Sample Size in the Texture Editor still holds the library value, which is set in imperial units. Enter the real size of the material in the Width and Height fields.
How long does the Best quality level take?
There is no general figure, because it depends on the machine and the image size. Measure the ratio between Draft and Medium on your own machine, extrapolate from that, and run high settings outside working hours.
