The architect moves a gridline by 300 mm. In a set drawn with CAD, the MEP engineer reopens the floor plan, the corridor section, the riser diagram and the quantity table, then edits each one by hand. Miss one sheet and the set no longer agrees with itself.
That is the real difference behind revit mep vs autocad mep. AutoCAD produces drawings. Revit produces a model and pulls the drawings out of it. Choosing between them is not about which software is better; it is about the task in front of you. To work through a full MEP workflow on a real building, see the Revit MEP course.
This article compares the two across six everyday tasks, shows the same duct run built in both tools, and is honest about the jobs where CAD is still the right answer.
What is autocad mep, and what is Revit MEP
The question what is autocad mep has a short answer. It is the MEP toolset shipped with AutoCAD, not a separate product. Autodesk documentation describes it as catalogs of drawing objects that represent the real-world parts in building systems, plus discipline tools for mechanical, electrical and plumbing work. You still work inside DWG files and you still organise the set sheet by sheet.
Revit MEP is not a separate product either. It is the familiar name for the engineering side of Revit: ducts, pipes, cable tray, conduit, equipment, systems and schedules. The article what Revit MEP is covers the three groups M, E and P in detail.
| Item | AutoCAD | Revit |
|---|---|---|
| What you produce | sheets inside a DWG file | a building model inside an RVT file |
| Plans and sections | each one is a separate drawing | views of the same single model |
| Engineering data | written into each file | carried by the object, shared by every view |
| What you can hand over | DWG, PDF | DWG, PDF, IFC, schedules |
Revit MEP vs AutoCAD MEP across six tasks
Comparing two packages by feeling gets nowhere. Comparing them task by task shows exactly where each one wins.
| Task | Working with lines | Working with a model |
|---|---|---|
| Route a duct run | redraw it on every plan that shows it | build it once, every view shows it |
| Produce a section | draw it by hand from imagination | cut it straight out of the model |
| Change a duct size | edit linework on every sheet involved | change one parameter, views follow |
| Take off quantities | measure and count on the drawing | schedule reads the objects directly |
| Find clashes | overlay sheets and look | a checker lists every clashing pair |
| Record engineering data | type text beside the linework | parameters live inside the object |
None of that means CAD is weak. It means CAD does not store the object, so everything derived from the drawing has to be redone by hand.
The same duct run, built two ways

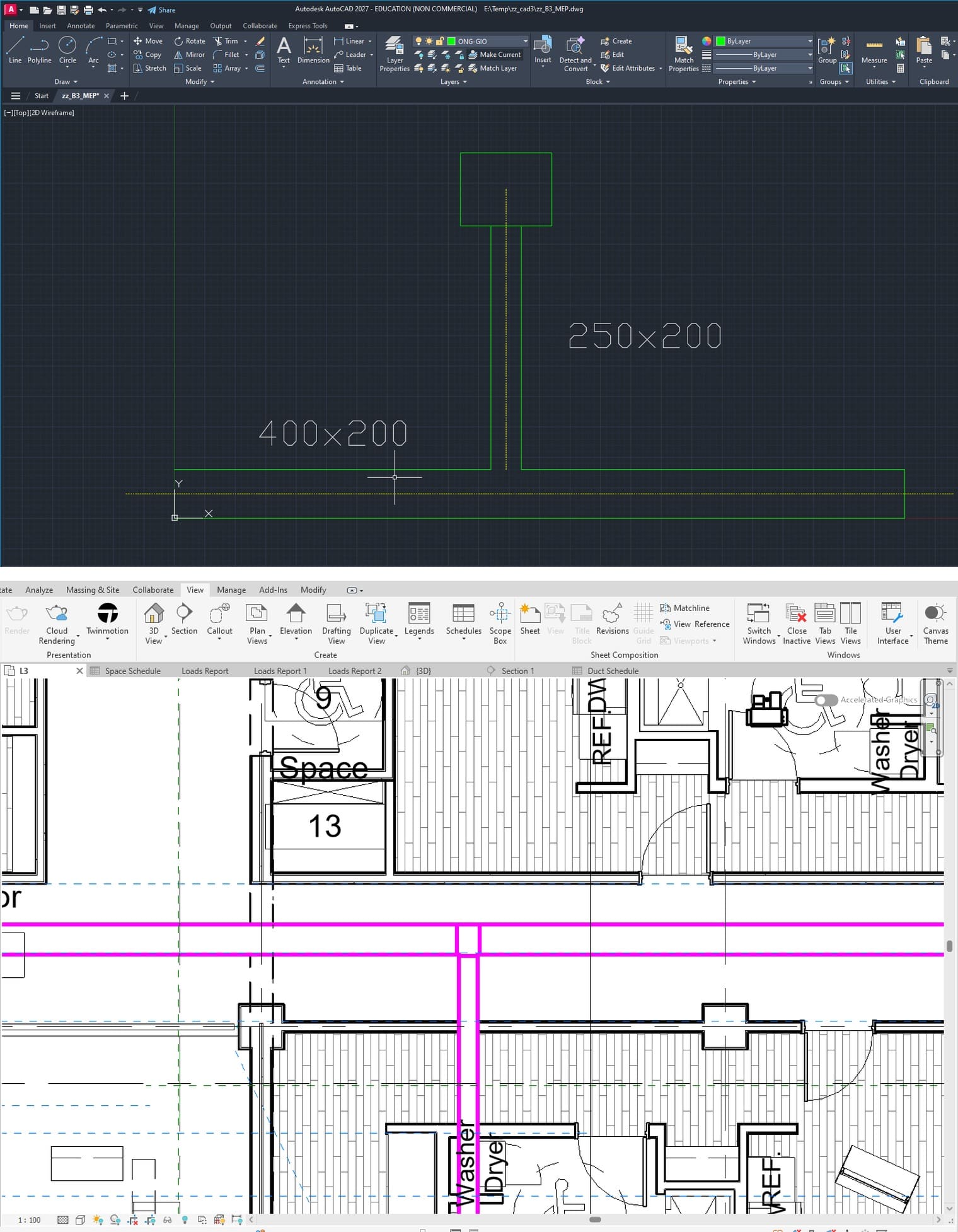

The run below is a 400x200 duct along a corridor with a 250x200 branch into a room. Above it is drawn with lines in AutoCAD: two outlines, a dashed centreline and a size note. Below it is a Revit model seen in plan.

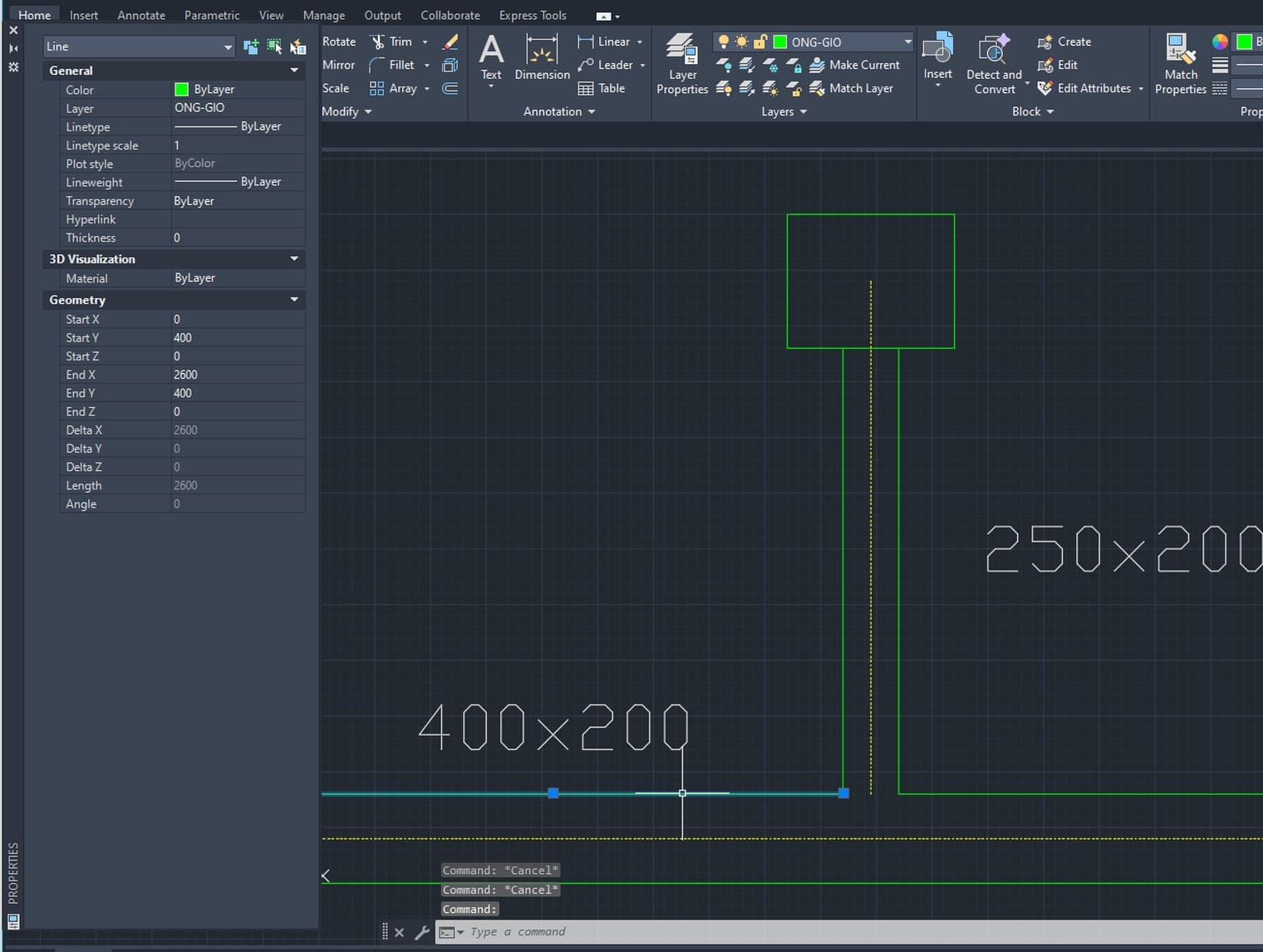

Printed on paper the two are nearly identical. The difference is what the software is holding. Click the linework in AutoCAD and the Properties palette returns geometry and presentation: layer ONG-GIO, colour, linetype, length 2600, start and end coordinates. Nothing says this is a duct, and nothing carries a size.

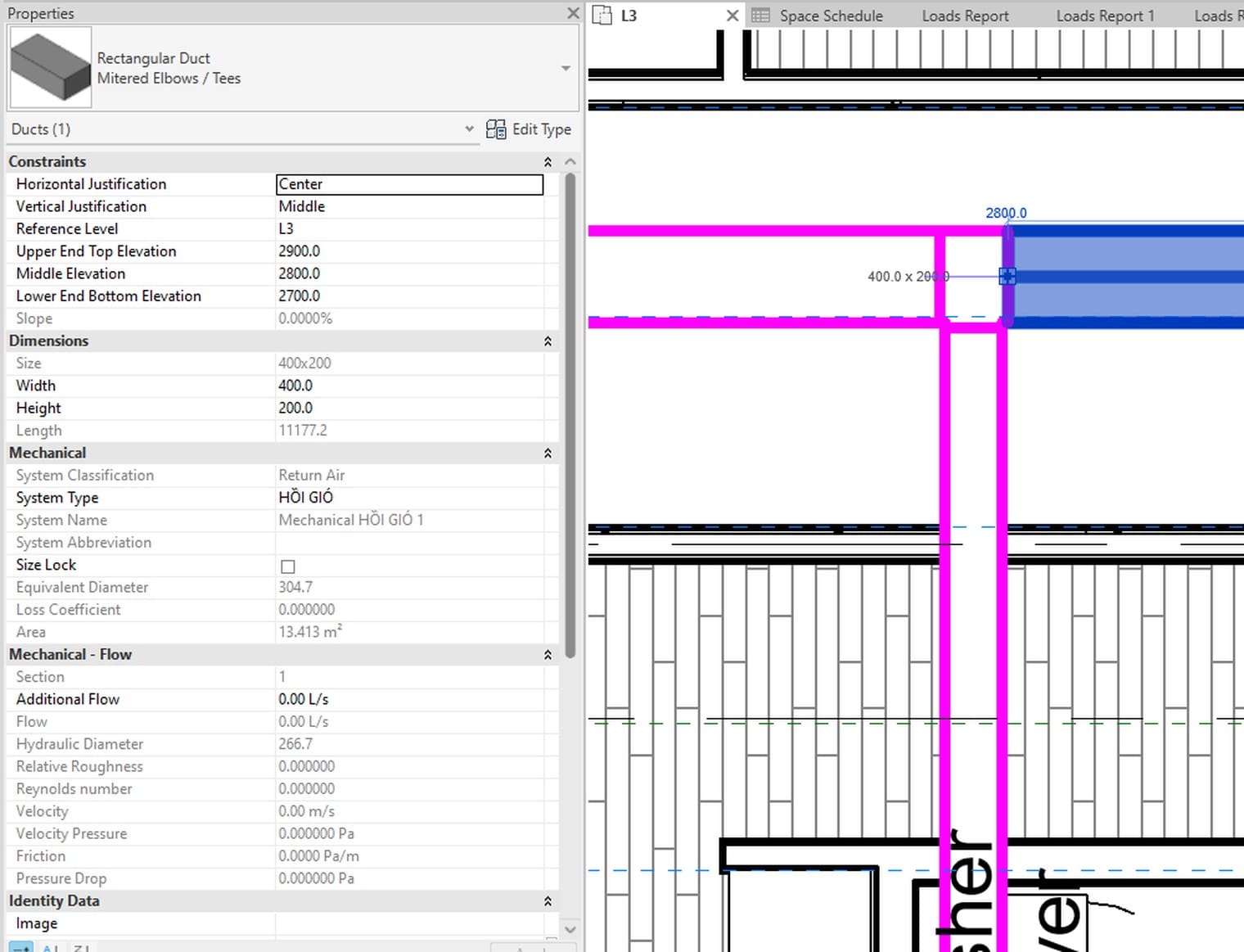

Click the duct in Revit and the palette returns something else entirely. Size reads 400x200, Middle Elevation 2800, Lower End Bottom Elevation 2700, segment length 11177.2, then System Type, System Name, a surface area of 13.413 m² and the flow, velocity and pressure drop fields the calculation tools use.
One small detail sums the whole thing up. When the 250x200 branch meets the main run, Revit cuts the main duct and inserts the connecting fitting by itself. With linework the drafter trims two outlines and draws the neck. The step by step routing workflow is in drawing ducts in Revit.
Change one thing, and how many drawings follow

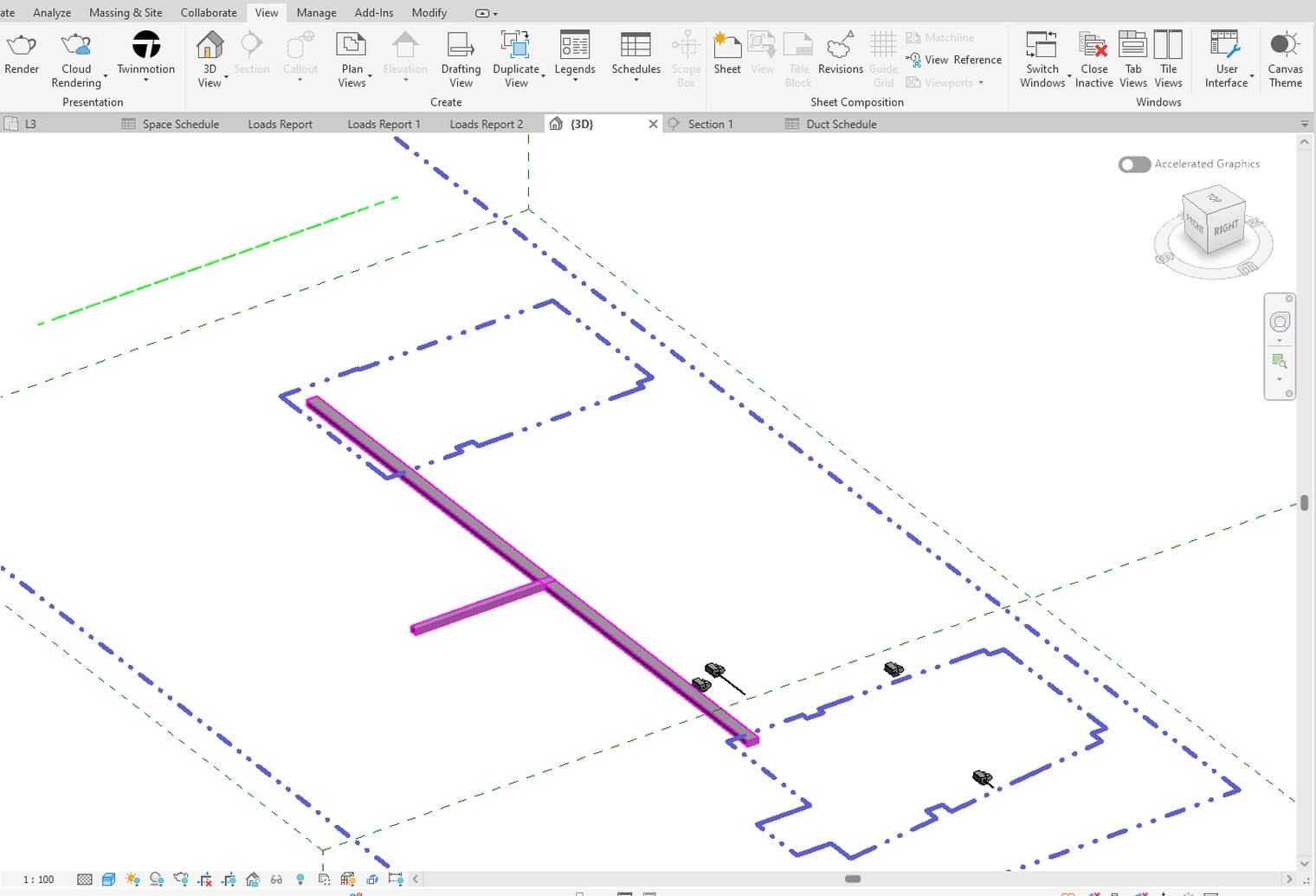

Open a three dimensional view and the same run is already there. Nobody built it twice, because a plan and a 3D view are two ways of looking at one object.

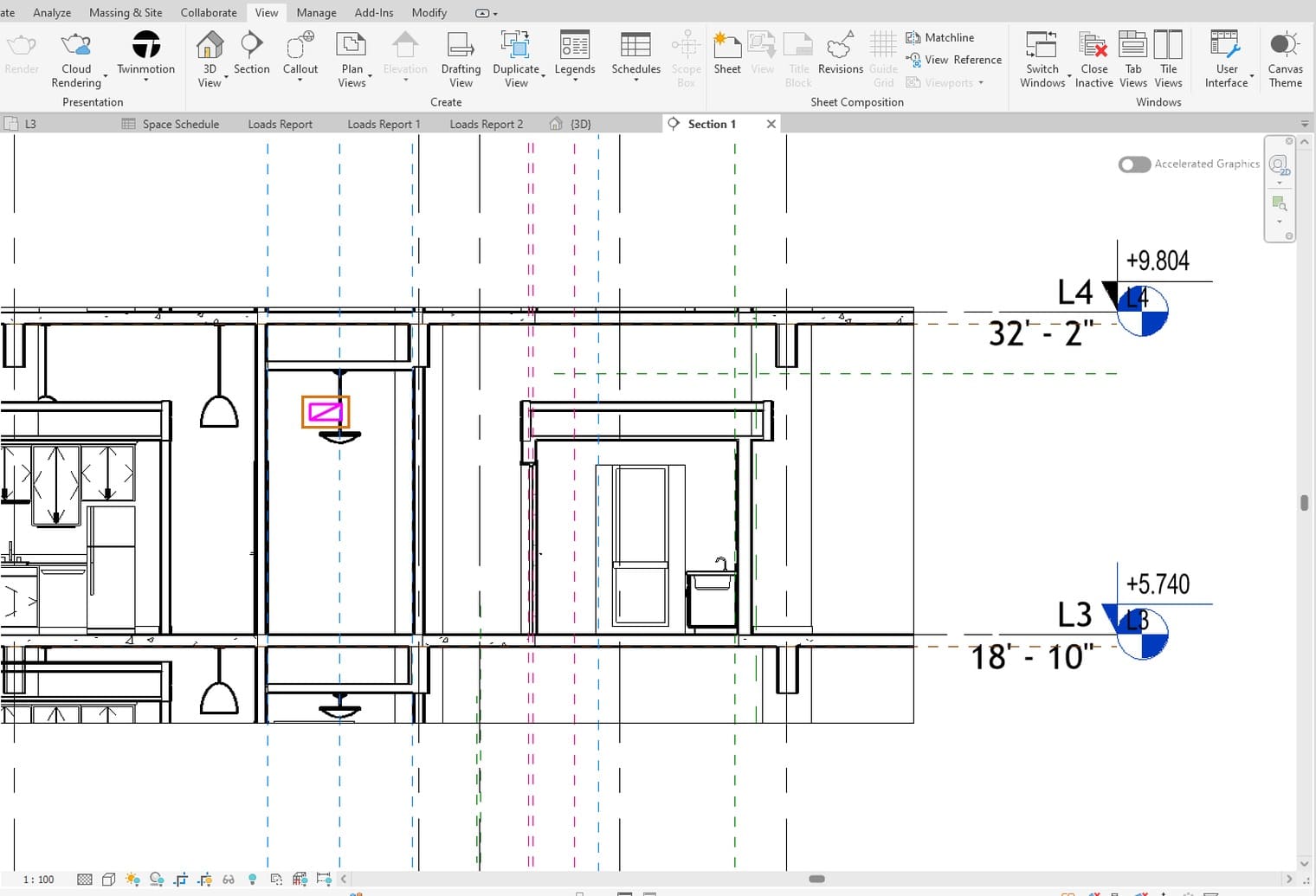

Sections behave the same way. Place a section line across the corridor and the duct appears at the elevation it was given, sitting between the L3 and L4 slabs. Lower the middle elevation from 2800 to 2600 and the plan, the section and the 3D view all follow in one edit. In a line based set each drawing is independent, so each one has to be corrected separately.
This is where the extra effort at the start pays back. Modelling is slower than drafting in week one. From the third revision onwards it is the other way round, because each revision touches one place.
Clashes and quantities: two jobs linework cannot do

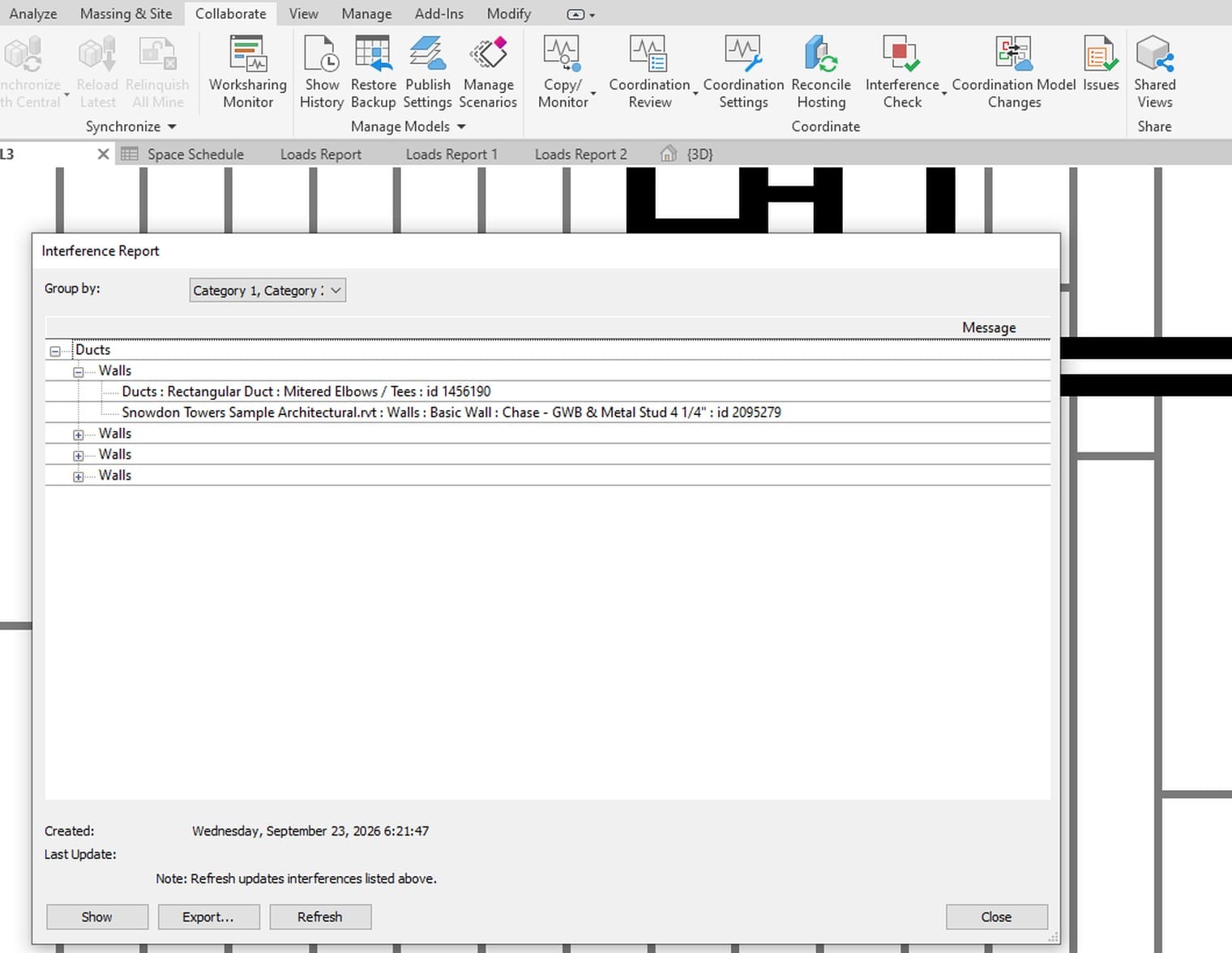

A duct hitting a beam, a pipe crossing a cable tray, in a two dimensional set these only surface when somebody overlays the sheets and looks carefully. With a model the search is the machine's job. The tool sits on the Collaborate tab, Coordinate panel, Interference Check. Pick a set of categories on the left, pick the linked model on the right, and it returns every clashing pair with element ids; clicking a row moves the view to it.

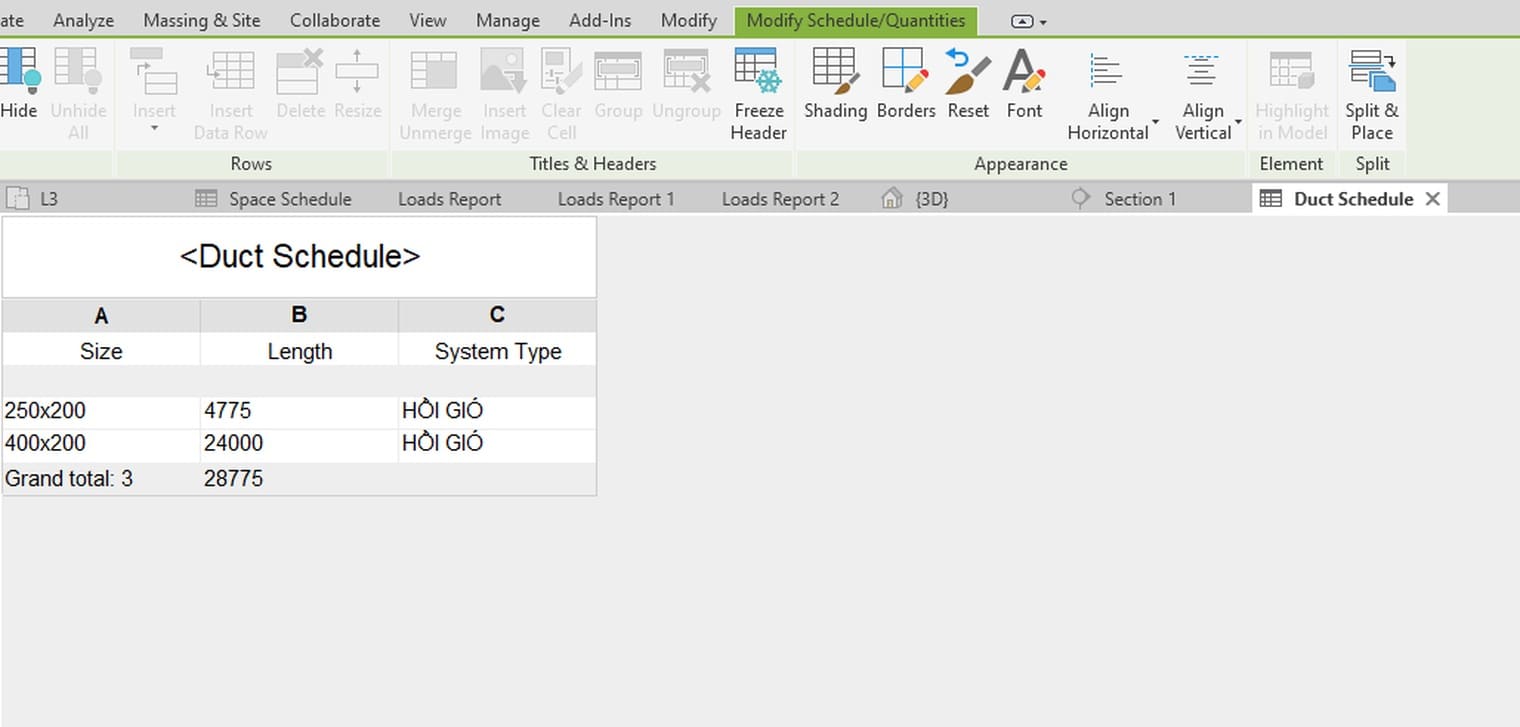

Quantities work the same way. Length, size and surface area already sit inside each segment, so a schedule only has to read and total them. The run built above comes back as three segments totalling 28775 mm, split across two sizes, and it refreshes when the model changes. Building one is covered in schedules in Revit.
When CAD is still the right choice
Some jobs are made harder, not easier, by modelling them. These four turn up on almost every project.
- Riser diagrams and single line diagrams. These are conventional graphics with no real elevation and no real size. Linework is faster and closer to what the drawing actually means.
- Editing an existing set. If a project already has two hundred DWG sheets and only a few light fittings move, rebuilding a model is wasted effort.
- The contractor or client only accepts DWG. When the contract names DWG deliverables, whatever built them has to end up as DWG.
- Small two dimensional details. Support brackets, wall penetrations and typical sections pulled from an old library are quicker finished straight in CAD.
The two tools do not exclude each other. Plenty of MEP offices run both: a model for coordination and quantities, linework for conventional diagrams and for legacy sets.
Bringing a DWG into Revit as a background
The way to make the two work together is to use the DWG as a background for modelling. The ribbon path is the Insert tab, Link panel, Link CAD. The Autodesk page Linking CAD Files gives the same path.

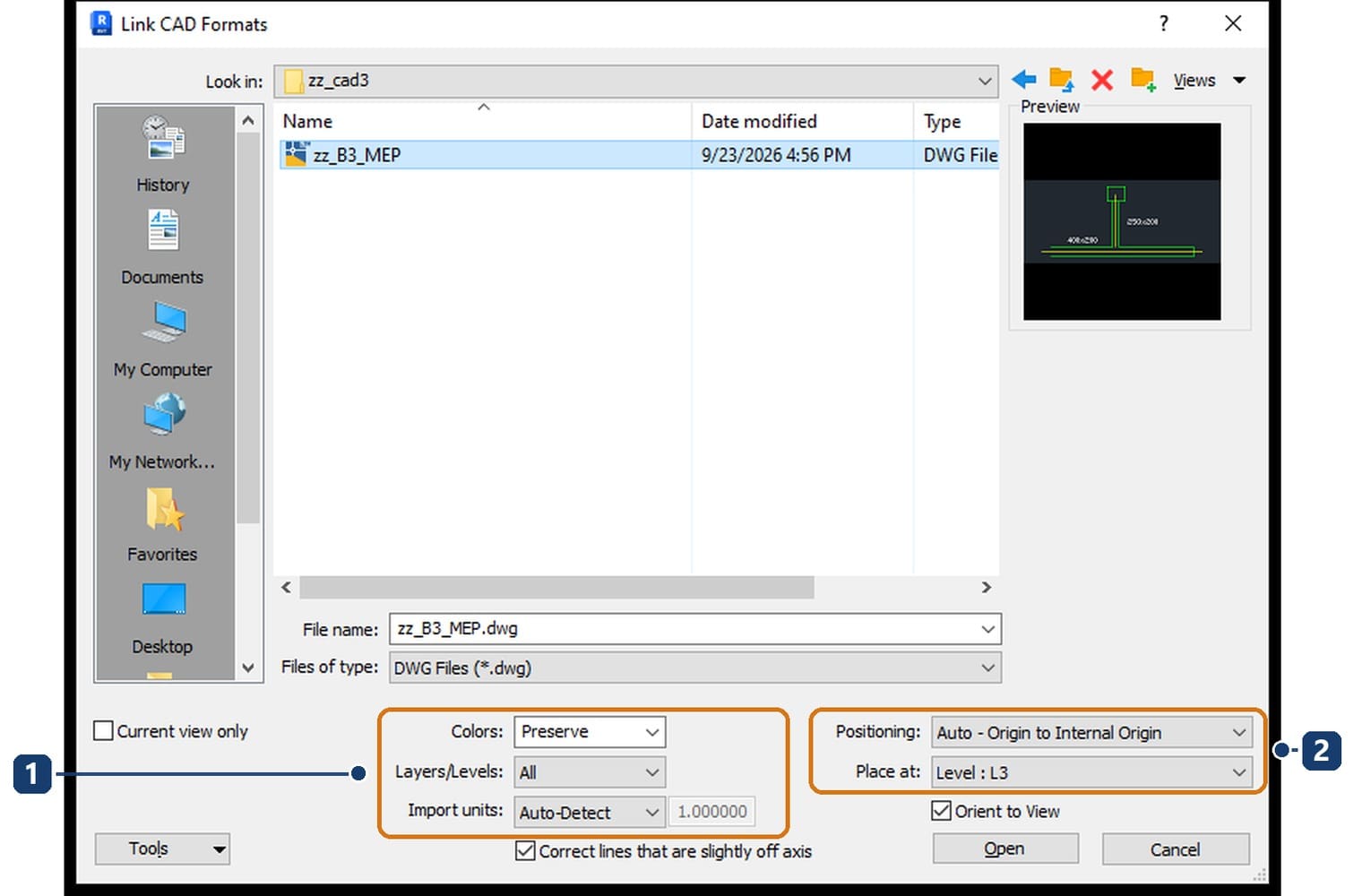

Four settings in the Link CAD Formats dialog decide whether the drawing lands where it should.
| Setting | Comes set to | What to use |
|---|---|---|
| Colors | Preserve | Black and White, so the CAD lines sit back as a background |
| Layers/Levels | All | Visible, when only the layers switched on in the DWG are needed |
| Import units | Auto-Detect | millimeter, once you know the real unit of the DWG file |
| Positioning | Auto - Origin to Internal Origin | leave it, when the DWG files share an origin |
One thing is worth knowing before dragging a whole DWG set in. A CAD link carries linework, not data. Layers do not become Revit systems, blocks do not become families, and a size note does not become a parameter. The background is there to position things, while the ducts and the equipment still have to be modelled with Revit's own tools.
Place at names the level the background belongs to. Tick Current view only and the background shows in the open view alone. Once the model is built, unload the link to keep the file light. The other direction, exporting Revit drawings to DWG for the contractor, is covered in exporting Revit drawings to CAD.
Revit or autocad: which one first
The question revit or autocad comes up often from students and from engineers changing track. For MEP work the sensible order is enough AutoCAD first, then Revit, for two reasons.
First, legacy sets and deliverables are still DWG, so reading and editing CAD drawings is not optional. Second, several drafting habits have to be dropped when you move to a model, and knowing what you are dropping makes the change faster. The article moving an MEP engineer from 2D to BIM lists those habits.
Enough AutoCAD does not mean all of AutoCAD. Draw, edit, manage layers, plot to scale and export a PDF, and you are ready for Revit. The MEP learning path is set out in learning Revit MEP.
Frequently asked questions
People often search revit mep vs revit, so how do the two differ?
They do not differ as software. There is one Revit, and one installation gives you the architectural, structural and MEP tools together. Revit MEP is simply the habitual name for the engineering tools, left over from when Autodesk sold three separate editions.
Does the AutoCAD MEP toolset cost extra?
No. Autodesk documentation describes the MEP toolset as part of AutoCAD rather than a separate purchase. What is worth checking is whether the toolset was selected during installation, because without it the ribbon only carries the plain AutoCAD tabs.
Can a Revit model replace DWG deliverables?
Yes, if the contract allows it. Revit exports sheet by sheet to DWG, so the final package is still a DWG set; it is simply generated from a model rather than drafted.
Small project, one engineer, is Revit worth it?
If the set is a few sheets and barely changes, linework is faster. Once a building has repeated floors, several services sharing one ceiling void, or a client who keeps changing the brief, the model starts paying for itself. A useful test is to count how many drawings one change would touch. When that number passes three or four, hand editing stops being the cheaper route.
