What is Revit MEP? What an MEP engineer actually does with it on a project

Revit MEP is the building-services toolset in Autodesk Revit. What the M, E and P systems model and return, and the six jobs an MEP engineer does with it.

  • Tran Ngoc Viet
  • 11 min read
A pump room modelled in Revit MEP: pumps, headers, valves and supports sit where they will be installed — the maintenance clearance is visible now, not discovered on site Photo: Institute of Information Technology in Civil Engineering

Revit MEP is the toolset inside Autodesk Revit for modelling a building's three services systems: mechanical (HVAC), electrical, and plumbing with fire protection. Unlike drawing pipes in AutoCAD, every duct and every panel here is an element with parameters, connected into a system. That is why the model schedules itself, sizes itself at a preliminary level, and shows clashes with the structure while the design is still on screen.

I have worked in building services for seventeen years, seven of them on the client side — the person who reviews the MEP models of consultants and contractors, and lives with the consequences when a model is wrong. This article is written from that seat: what Revit MEP is, what it gives back to the engineer, and what it is used for on a real project.

What Revit MEP is, and why it is no longer a separate program

The toolset appeared in 2006 as Revit Systems, was renamed Revit MEP a year later, and lived as a separate product alongside Revit Architecture and Revit Structure. Autodesk's product page still uses the name for the building-services features. From the 2013 release Autodesk merged all three into a single Revit. Today, installing Revit gives you the MEP tools; "Revit MEP" survives as the name of that toolset and of the trade.

Two practical consequences:

  • There is no separate "Revit MEP" download. Anyone offering "Revit MEP 2027" is talking about Revit. Students get the free education licence by following our guide to installing Revit with a student licence.
  • Revit LT has no MEP tools. The cut-down edition drops duct, pipe and circuit systems; a services office that buys Revit LT by mistake cannot do its work.

On a project the MEP model is its own file, linked to the architectural and structural models rather than built inside them. That is why MEP engineers learn Revit in their own course — the Institute's Revit MEP (BIM for building services) course — rather than alongside architects.

The three systems, M – E – P: what you model and what the model returns

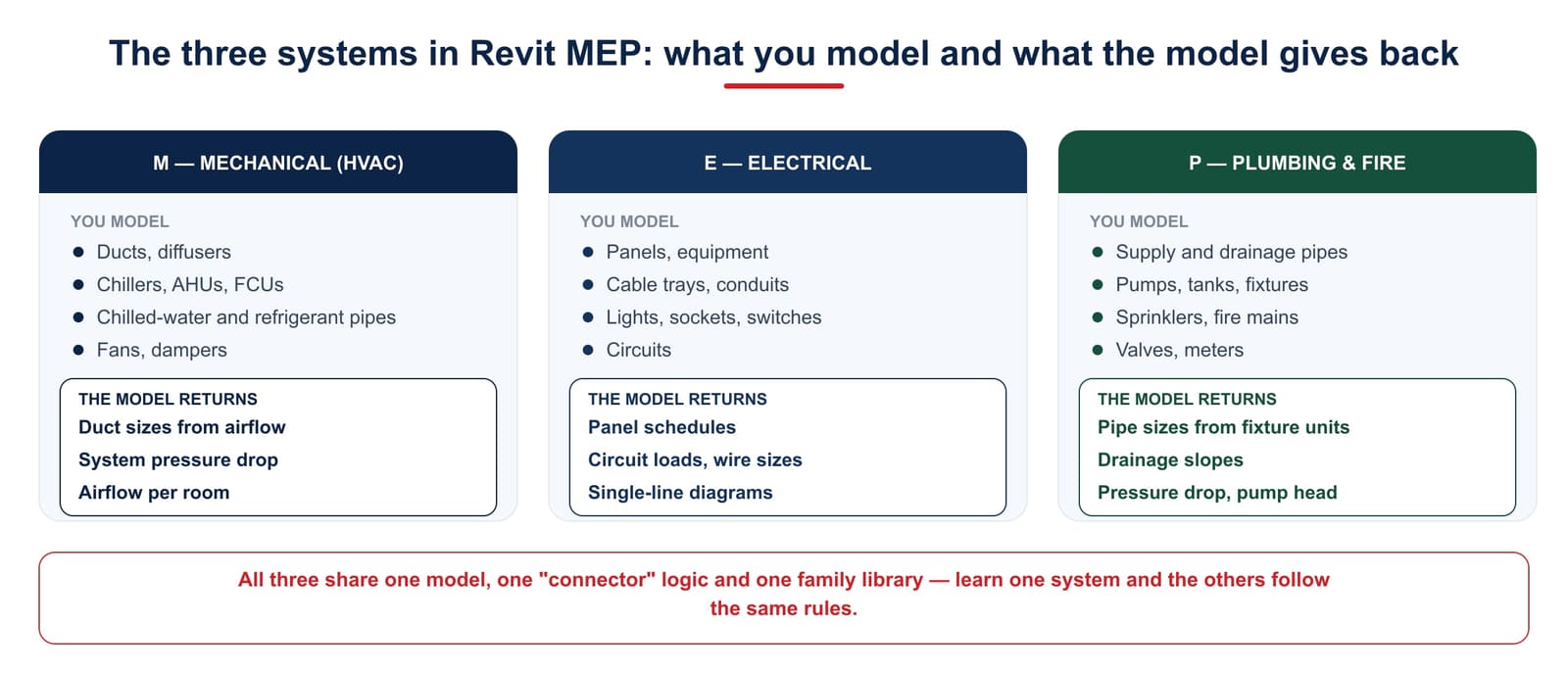

The three systems in Revit MEP: mechanical models ducts and air handlers, electrical models panels and cable trays, plumbing models supply, drainage and fire pipes; each returns sizes, pressure drops and panel schedules Photo: Diagram by the Institute of Information Technology in Civil Engineering

MEP stands for three systems: Mechanical (HVAC and refrigerant piping), Electrical (power, lighting, low-voltage) and Plumbing (water supply and drainage, which in Vietnam usually includes fire protection). In Revit each has its own tools and libraries but shares one logic.

SystemYou modelThe model returns
M — MechanicalDucts, diffusers, AHUs, FCUs, fans, dampers, chilled-water pipesDuct sizes from airflow, system pressure drop, airflow per room
E — ElectricalPanels, cable trays, conduits, lights, sockets, circuitsPanel schedules, load per circuit, single-line diagrams
P — Plumbing, fireSupply and drainage pipes, pumps, tanks, fixtures, sprinklersPipe sizes from fixture units, drainage slopes, pressure drop and pump head

Engineers in Vietnam usually work in one system, but when learning you should pass through all three at a basic level. Not to do your colleagues' work, but because on site the three systems fight over the same ceiling void, and the person who models their own system without reading the one next to it is the person who causes the clashes.

"Systems", not "pipes": what makes Revit MEP different from AutoCAD

In AutoCAD a duct is two parallel lines. In Revit a duct is a segment with a cross-section, a material, an airflow, and a connector at each end — a connection point that carries data. Connect the duct to a diffuser and the diffuser to an AHU, and Revit understands they belong to one system: the level 5 supply system, running from AHU-05 to 24 diffusers.

That idea of a system is where the value of the MEP toolset comes from:

  • Preliminary sizing. Assign an airflow to each diffuser and Revit sums back to the AHU and proposes duct sizes by velocity or friction loss. The same for pipes by fixture units, and for circuits by load.
  • Logic checks. A diffuser not connected to any system, a circuit not assigned to any panel — Revit flags it at once. On a 2D drawing the error surfaces when the fitter asks "where does this end go?"
  • Schedules by system. How many metres of 600×300 duct belong to the level 5 supply system, how many luminaires sit on panel DB-5A — taken straight from the model.
  • Panel schedules that write themselves. Assign devices to circuits and circuits to panels; the panel schedule updates whenever you change anything.

The limit needs stating plainly: these figures are preliminary, there to keep the model consistent and to check it quickly. Cooling loads, equipment selection, sprinkler hydraulics and short-circuit calculations are still done in specialist software and to Vietnamese standards. Anyone who thinks the software "designs for you" has misunderstood it; it represents and checks the design.

What an MEP engineer does with Revit MEP on a real project

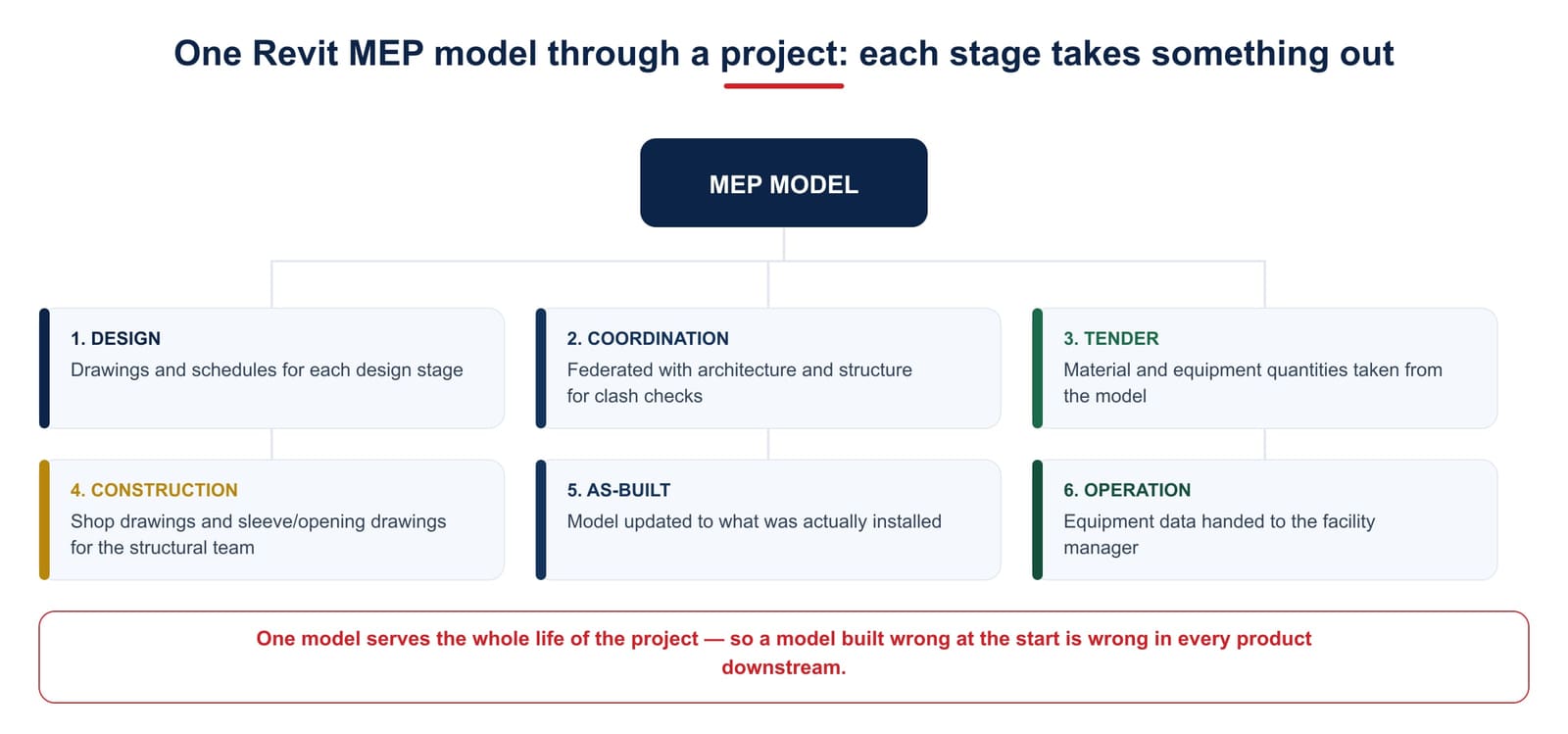

One Revit MEP model through six project stages — design, coordination, tender, construction, as-built, operation — with a product taken out at each stage Photo: Diagram by the Institute of Information Technology in Civil Engineering

Most "what is Revit MEP" articles stop at a feature list. I will tell it differently: how a services model travels through a project, and what the engineer takes out at each stage.

1. Design. Build the model stage by stage — concept, detailed design, construction drawings — at increasing detail. Plans, sections, schematics and schedules all come out of the model, so moving an AHU updates every sheet it appears on.

2. Coordination. The MEP model is federated with architecture and structure, usually in Navisworks, for clash detection. On the client side this is the meeting I attended most regularly: clashes between ducts and beams, cable trays and drainage, are classified, assigned and re-checked at the next round. MEP coordination in BIM describes that process.

3. Tender. The client takes material and equipment quantities from the model to build the estimate and check the bids; contractors use the same model to take off their quantities. I have used a BIM model for MEP quantity take-off at tender stage. When every party takes off from one model, the bids sit far closer together than when each takes off from 2D drawings in its own way.

4. Construction. The contractor develops the model to construction level: supports, joints, installation sequence. From it come the shop drawings and, more importantly, the sleeve and opening drawings sent to the structural team before the concrete is poured. A wrong opening means core-drilling later; this is where the services model most visibly turns into money.

5. As-built. Update the model to what was actually installed — rerouted pipes, substituted equipment — so the handover model matches the building.

6. Operation. Equipment data in the model — make, capacity, installation date, location — passes to the building management system. At my current company the model is linked to the asset-management software, so the facilities team can find which valve feeds which zone without unrolling paper drawings.

All six stages use one model, so a model built carelessly at stage 1 is paid for in the other five.

What Revit MEP helps with, and what it does not

After years of reviewing other people's models, I find that wrong expectations of the software do as much harm as not using it.

Real help:

  • Clashes between systems and with the structure appear on the screen, not in the ceiling.
  • A consistent drawing set: plans, sections and schedules no longer contradict each other.
  • Quantities taken from the model, repeatable and auditable.
  • Fast design changes — move the plant room and every sheet follows.

No help, or only if you do it right:

  • It does not design for you. The model is only right when the modeller understands the system. A common sight when reviewing: a beautiful model where the drainage has no fall, or the AHU sits where its access door cannot open.
  • Vietnamese libraries are thin. Families for major brands exist; local panels, cable trays and equipment usually have to be built. That is why the Creating families in Revit course is full of services engineers.
  • It does not replace calculation software. Said above, but worth repeating because many submissions to clients say "calculated in Revit" where a calculation to standard is required.
  • Over-detailing early is the commonest waste: modelling every support bolt at concept stage, then throwing it all away when the scheme changes. The right detail per stage is agreed through LOD.

Who should learn Revit MEP, and what to learn first

The clearest need is among MEP design engineers in consultancies, MEP contractors' engineers producing shop drawings, and BIM coordinators running coordination. Quantity surveyors estimating services do not need to model well but must read a model to extract quantities. Now that BIM is mandatory for grade II buildings and above, client and project-management staff also need to understand the services model to set requirements and sign off.

What to learn first? Not AutoCAD. The real prerequisite is understanding the system you will model: how air conditioning works, how circuits are split, how drainage is routed. Someone who understands the system can model a typical floor after two months; someone who does not will finish the course and still produce a wrong model. Final-year students in building services, HVAC or building electrical engineering can do it, provided they have passed the discipline subjects.

For engineers currently working in 2D, the three habits to drop and the eight-week plan are in What an MEP engineer learns to move from 2D drawings to BIM; this article does not repeat them.

Frequently asked questions

Is Revit MEP installed separately, and where do I get it?

No. Since the 2013 release the MEP tools are part of Revit; install Revit and you have them. Just note that Revit LT has no MEP tools. Students download the free education licence from Autodesk Education; professionals use their firm's subscription.

Can Revit MEP size ducts, pipes and cables?

Yes, at a preliminary level: duct sizes by velocity or friction loss, pipe sizes by fixture units, load and cable size by circuit. The results keep the model consistent and allow quick checks; submissions still need calculations to Vietnamese standards.

Are Vietnamese MEP families available?

Partly. Major manufacturers publish families for their equipment; locally made panels, cable trays and equipment mostly have to be built or taken from the firm's library. Building families is a skill every services engineer using Revit needs sooner or later.

Do I need AutoCAD before learning Revit MEP?

Not as a requirement. You need to read 2D services drawings, because designs received from partners are often still 2D; but operating AutoCAD is not a prerequisite. Many students learn Revit first and find it easier, with no linework habits to unlearn.

How is Revit MEP different from Navisworks?

Revit builds the services model; Navisworks federates models from many disciplines and programs for clash detection and sequencing. The services engineer models in Revit; the coordinator checks in Navisworks. What is Navisworks used for? goes further.

About the author

Tran Ngoc Viet — Head of BIM Management at Thai Binh Investment JSC; 17 years in building services, BIM and project management; leads the BIM Manager course at the Institute of Information Technology in Civil Engineering
