Open Revit for the first time with an MEP model in mind and the Systems tab greets you with more than thirty buttons. Many beginners learn it one command at a time: ductwork today, pipework tomorrow. A few weeks later they can draw, yet the model calculates nothing, because none of those pipes belongs to a system.
The right way to learn Revit MEP is by system, not by command. This article splits the job into five stages, from Revit basics to coordinated documents. Each stage ends in a self-check you run inside Revit 2027 with tools that ship with the software, so you know for certain whether you have passed it. If you would rather have someone correct your model every session, the Institute runs a 15-session Revit MEP course.
Where to start when you learn Revit MEP
The real prerequisite is not AutoCAD. It is understanding the systems you are about to model: how domestic water is distributed, how supply and return air differ, what a circuit is made of. Anyone unsure about the three disciplines should read what Revit MEP is before opening the software.
Beyond that, you need three things.
| What | Where to get it | Why |
|---|---|---|
| A Revit licence | Students and educators can use the free education licence; our article on installing Revit as a student shows how | Learn on the current release, not a pirated copy |
| An MEP template | Revit 2027 ships Mechanical-Default_Metric, Electrical-Default_Metric, Plumbing-Default_Metric and Systems-Default_Metric | Pipe types, system types and discipline views already set up |
| A model to look at | The Samples folder of the installation holds the Snowdon Towers project, split into HVAC, Plumbing, Electrical, architectural and structural files | See what a finished system looks like before you build one |
The template settles a great deal before you draw a single line, so our piece on discipline templates in Revit is worth reading. Snowdon Towers uses imperial units. To read it in millimetres, change the display under Manage › Settings › Project Units (shortcut UN), and do not save the sample file.

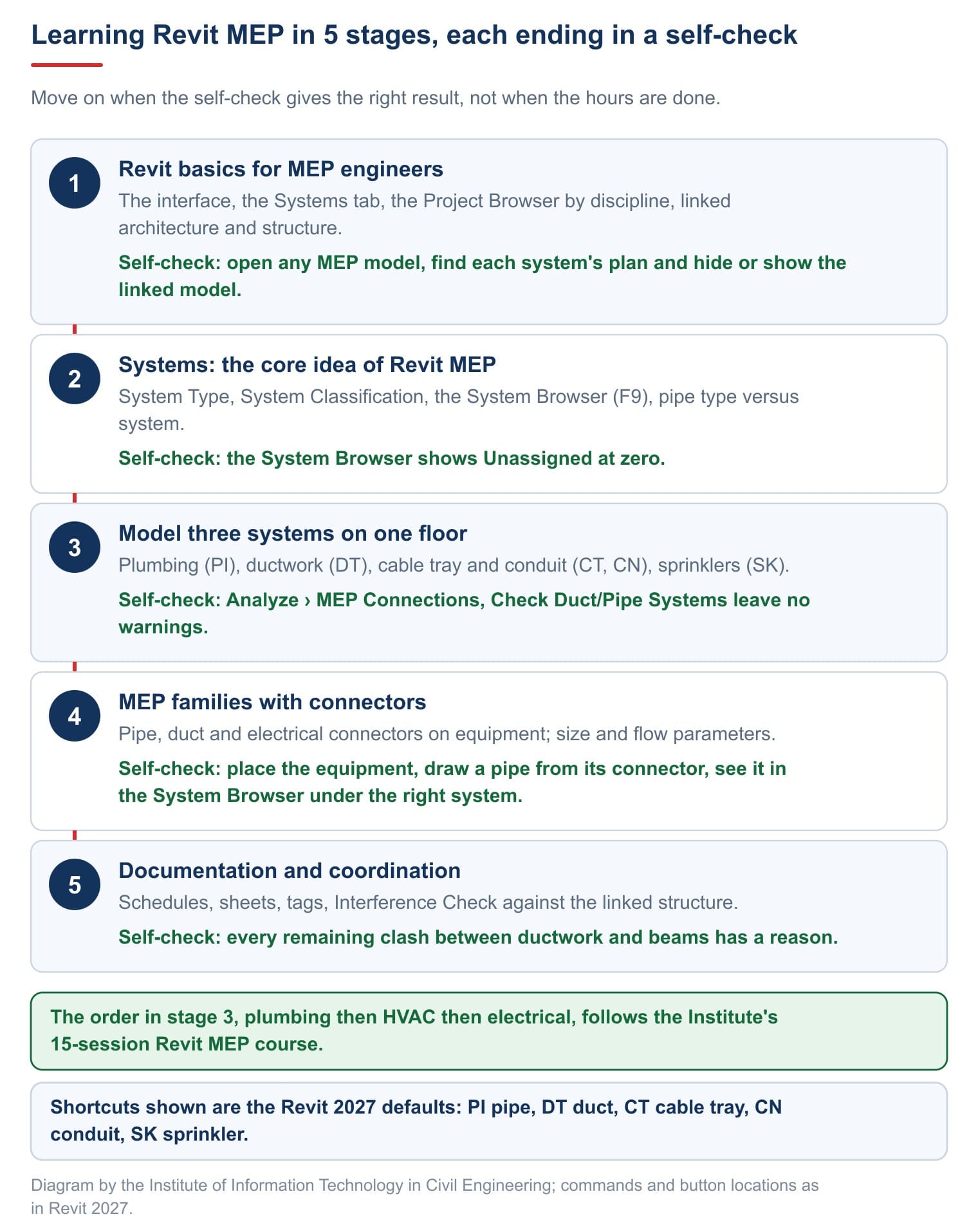

A Revit MEP learning path in five stages
The stages are ordered by dependency: each one uses what the previous one built. Move on when the self-check gives the right result, not when you have sat through enough sessions.
Stage 1: Revit basics for MEP engineers

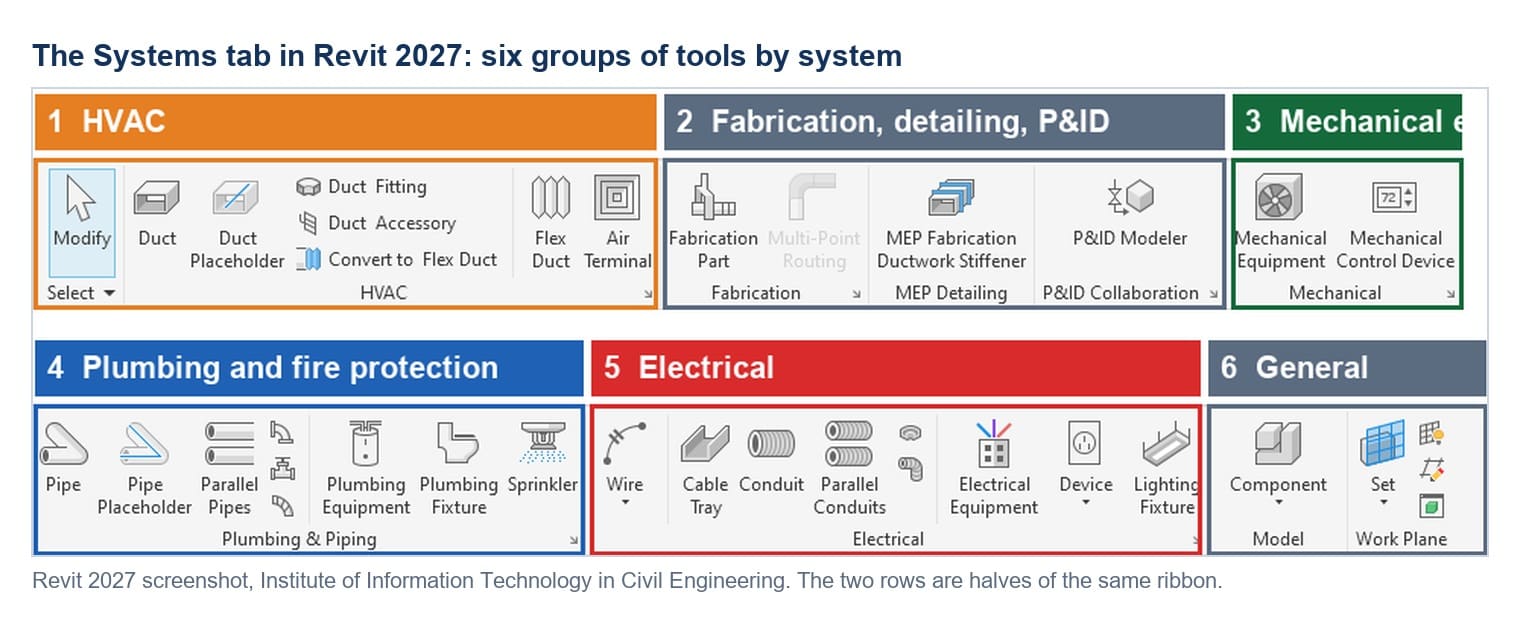

The Systems tab in Revit 2027 falls into six groups of tools. Seeing which group serves which system is the first job, because every modelling action starts here.
| Group | Ribbon panel | Main buttons |
|---|---|---|
| 1 | HVAC | Duct, Duct Placeholder, Duct Fitting, Duct Accessory, Flex Duct, Air Terminal |
| 2 | Fabrication, MEP Detailing, P&ID Collaboration | For models close to construction; leave until after stage 5 |
| 3 | Mechanical | Mechanical Equipment, Mechanical Control Device |
| 4 | Plumbing & Piping | Pipe, Pipe Placeholder, Parallel Pipes, Plumbing Equipment, Plumbing Fixture, Sprinkler |
| 5 | Electrical | Wire, Cable Tray, Conduit, Parallel Conduits, Electrical Equipment, Device, Lighting Fixture |
| 6 | Model, Work Plane | Component, Set |
Three foundations complete this stage. First, link the architectural and structural models with Insert › Link Revit, then bring in grids and levels with Collaborate › Coordinate › Copy/Monitor. Second, learn the Project Browser: an MEP template sorts views by discipline, with branches such as Mechanical and Plumbing under Views (Discipline). Third, control what is visible with Visibility/Graphics, shortcut VG. Linking and checking between disciplines is covered in linking Revit models.
Stage 1 self-check. Open any MEP model. Within a minute you should find each system's floor plan in the Project Browser and switch the linked architectural model off and on in Visibility/Graphics.
Stage 2: systems, the idea behind the letters MEP
This is the stage that decides everything. Autodesk defines a system as "a set of logically connected elements" on its MEP Systems – Essential Skill page for 2027. Only elements assigned to a system take part in pressure-loss calculations and duct and pipe sizing.
Three parameters need separating from day one.
| Parameter | Where it lives | Example |
|---|---|---|
| System Classification | On the connectors of equipment and air terminals | A supply diffuser carries Supply Air |
| System Type | On the whole system, chosen as you draw | Supply Air, Return Air, Exhaust Air, Sanitary |
| System Name | The name of one particular system | Building Sanitary |

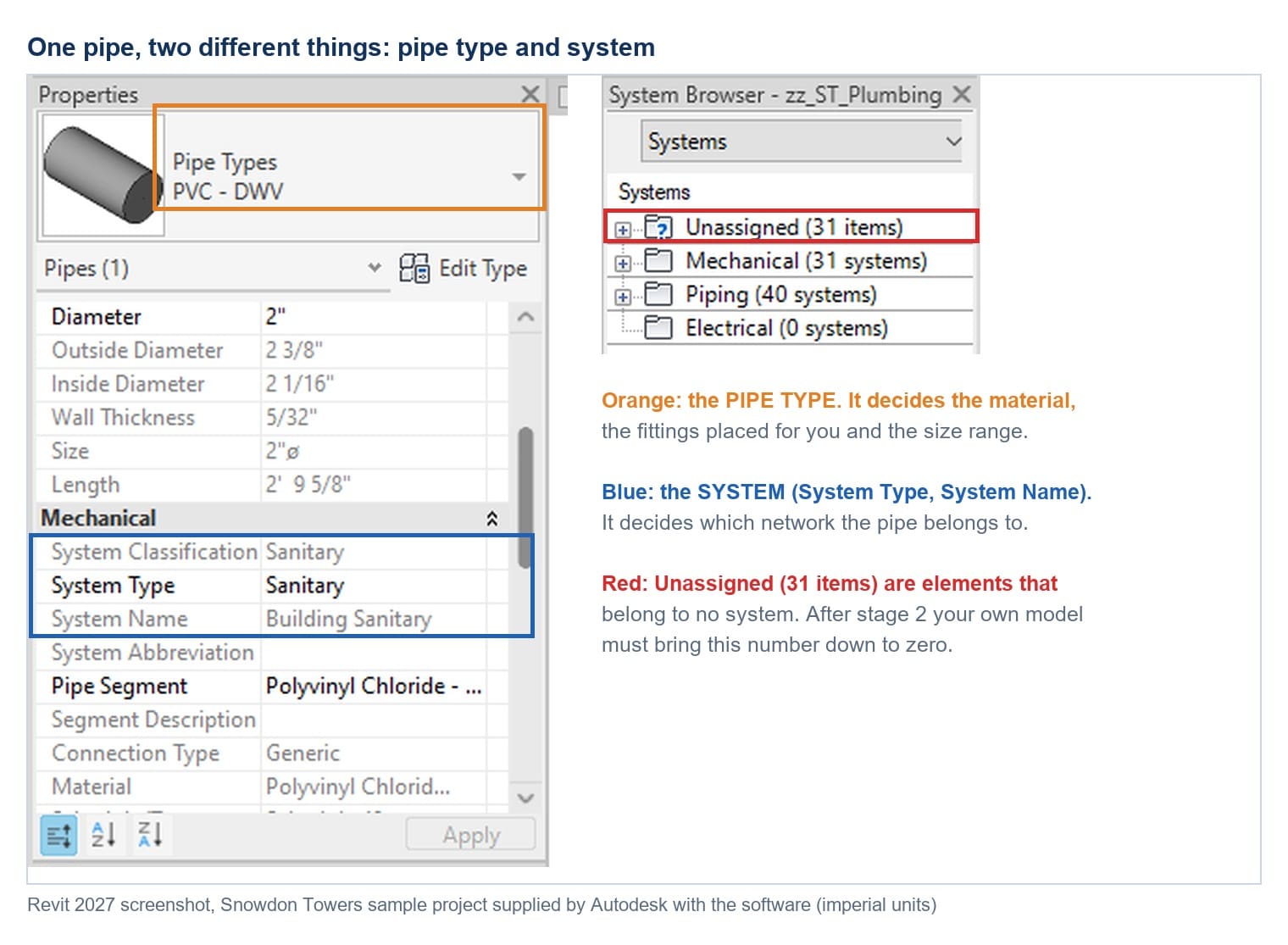

Beginners most often confuse the pipe type with the system. Select one drainage pipe in the sample model and the Properties palette shows them as two separate things.
The pipe type (PVC - DWV in the example) decides the material, the fittings placed for you and the size range. The system (System Type Sanitary) decides which network the pipe belongs to, how it is coloured and what it is calculated with. Changing one does not change the other.

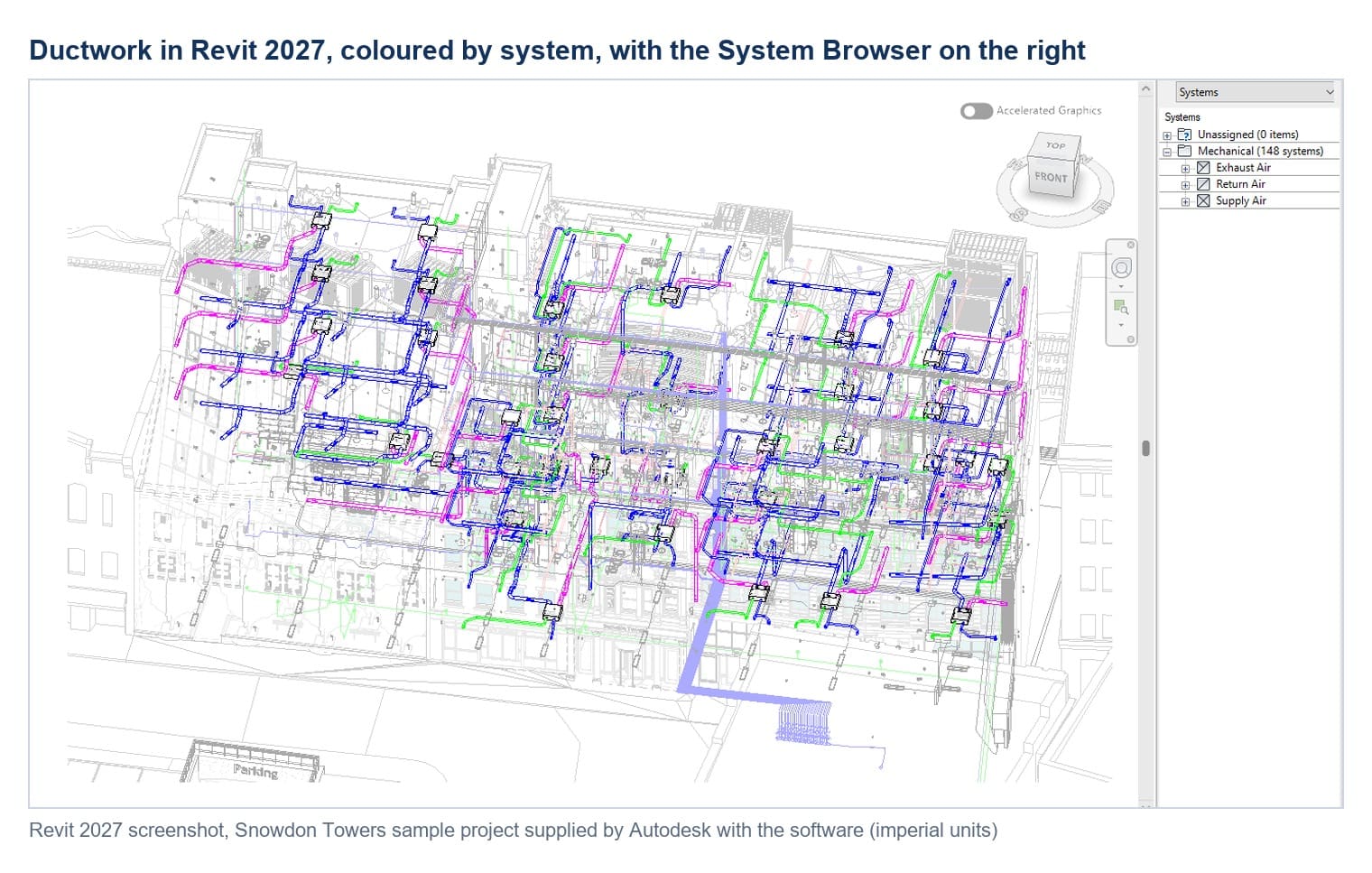

The tool for seeing every system at once is the System Browser, opened with F9 or from View › Windows › User Interface. The page About the System Browser describes it as an effective tool for finding components not assigned to any system. Those components sit under Unassigned.
Stage 2 self-check. Model a small toilet block: three fixtures and the drainage run connecting them. Open the system browser; Unassigned must read zero.
Stage 3: three systems on one floor
Work in the order plumbing, HVAC, then electrical, which is also the order of the Institute's 15-session syllabus. Fire protection shares the piping tools, and the Sprinkler button sits in the Plumbing & Piping panel, so it comes easiest last.
| Task | Button on the Systems tab | Default shortcut |
|---|---|---|
| Pipework, plumbing fixtures | Pipe, Plumbing Fixture | PI, PX |
| Ductwork, air terminals | Duct, Air Terminal | DT, AT |
| Mechanical equipment (fan coils, air handlers, fans) | Mechanical Equipment | ME |
| Cable tray, conduit | Cable Tray, Conduit | CT, CN |
| Panels, light fittings | Electrical Equipment, Lighting Fixture | EE, LF |
| Sprinklers | Sprinkler | SK |
Check two settings before you draw. Mechanical Settings (MS) and Electrical Settings (ES) live under the MEP Settings button at Manage › Settings. For pipe, Routing Preferences sit in the pipe type's Type Properties, under Segments and Fittings. That is where segments and fittings are assigned to size ranges.
Stage 3 self-check. Go to Analyze › MEP Connections and run Check Pipe Systems (PC) and Check Duct Systems (DC); for power use Check Circuits (EC). According to the Check Duct Systems page, Revit places warning markers when a system is not connected into a single network, when flow and demand do not match, or when flow direction is reversed. You pass when no marker remains that you cannot explain.
Stage 4: MEP families with connectors
Autodesk's page About Connectors in Families states that connectors attached to a family are what connect it to duct, piping, electrical and other systems. A handsome 3D block without connectors is only a shape, with nowhere for a pipe or a wire to attach.
This stage covers three skills: placing a connector on a face of the solid (Place on Face is the method Autodesk recommends), giving it a size and a flow, and checking its orientation. The groundwork on families is in what a Revit family is.
Stage 4 self-check. Place your new family in a project and draw a pipe starting from its own connector. The equipment must appear in the System Browser under the correct system.
Stage 5: documentation and coordination
When the systems are right, schedules almost write themselves. Create them from View › Create › Schedule/Quantities; panel schedules use Panel Schedules, shortcut PS. Quantity schedules are covered in schedules in Revit, and producing construction drawings from the model has its own article on MEP shop drawings.
Coordination uses Interference Check at Collaborate › Coordinate. It finds intersections between selected elements, including elements in a linked model, and produces a report.
Stage 5 self-check. Run Interference Check between your ductwork and the beams in the linked structural model. Every line left in the report must have a reason: a sleeve already provided, or a route already changed.
Five places beginners get stuck
| Mistake | What you see in Revit | Fix |
|---|---|---|
| Treating the pipe type as the system | Switching pipe type leaves the colour and system name unchanged | Pick the right System Type in Properties before drawing |
| Loose pipes not connected to equipment | Unassigned in the System Browser never reaches zero | Turn on Analyze › Show Disconnects to find open ends, then connect them |
| Families without connectors | The equipment cannot start a pipe and belongs to no system | Replace the family, or add connectors in the Family Editor |
| Tracing over a CAD underlay with no linked structure | Interference Check has no beams or slabs to compare | Link the structural model before routing the mains |
| Ignoring Routing Preferences | Wrong fittings appear, or Revit reports that no default fitting was found | Assign segments and fittings by size range in Type Properties |
All five share a root cause: modelling geometry first and thinking about systems later. Reverse that order and most of the rework disappears.
Revit MEP tutorial material: what to use and what to skip
Demand for PDF textbooks is high, but many of the PDFs shared widely were written for releases from 2011 to 2017. Their screenshots and button locations no longer match what you have installed. Use them to learn which topics matter, and check every button name against documentation for your own version.
| Material | Strength | Limit |
|---|---|---|
| Autodesk Revit 2027 Help | Matches your release, free, one page per tool | English only, organised by tool rather than by learning path |
| Autodesk Learn tutorials | Short pieces by topic, for example About building and analyzing MEP systems | Scattered; you set the order yourself |
| Snowdon Towers in the Samples folder | A real model with every system, ready to open | Imperial units; look and try, do not save |
| PDF textbooks for old releases | Often in Vietnamese, broad coverage | The interface has changed, so button names mislead |
| Pre-recorded video | Watch again at any time | Nobody corrects your model |
Use material with a clear source. Downloading copyrighted books from pirate shares infringes copyright.
Self-study, classroom or an online Revit MEP course
Self-study works if you have a model to compare against and do all five self-checks honestly. What it lacks is someone who points out the mistake in your own model. That is what a course sells.
| Format | Someone corrects your model | Suits |
|---|---|---|
| Self-study from documentation | No | People already working in MEP, with the discipline to self-check |
| Live online course | Yes, the lecturer fixes your file during the session | Working engineers, people far from a classroom |
| Classroom | Yes, side by side with the lecturer | Complete beginners who need close guidance |
| In-company training | Yes, on the company's own project | MEP departments moving a whole team to BIM |
The Institute's online course runs live on Microsoft Teams at fixed times, not as recorded lectures. Learners model in parallel on their own machines, send files for the lecturer to correct during the session, and keep a recording to review. Content, sample building and certificate match the classes in Hanoi and Ho Chi Minh City. The two formats are compared in detail in online or classroom Revit training.
How long it takes and what finished looks like
For MEP engineers who already read drawings fluently, the article on moving from 2D to BIM sets out an eight-week plan at eight to ten hours a week, with a week-by-week table. The Institute's course packs the same content into 15 taught sessions. People new to MEP need extra time for system principles, and should not cut it short.
Hours are not the measure. You are finished when you can model a typical floor with all three systems yourself and pass all five self-checks above on that floor.
What employers expect from someone who models MEP systems is discussed in our article on MEP engineers. The wider picture of building services is in what MEP means in construction.
Frequently asked questions
Do I need AutoCAD before I learn Revit MEP?
No. You need to read MEP drawings and understand how the systems work. AutoCAD helps with old drawing sets, but the 2D habit of drawing loose lines is exactly what you must drop in Revit.
Is Revit MEP separate software?
No. The MEP tools sit on the Systems tab of Revit itself, next to the Architecture and Structure tabs. The article on what Revit MEP is explains why the name is still in use.
How long does self-study take?
For someone already working in MEP, about eight weeks at eight to ten hours a week. The five self-checks in this article are a better measure than the number of weeks.
Do I need Dynamo or programming?
Not for these five stages. Dynamo and the Revit API come later, once you model fluently and want to automate repetitive work.
