Lift a ceiling tile in the corridor of almost any building and you will see ductwork, water pipes, cable trays and signal cables competing for the same void. In the trade, all of that goes by one name.
What is MEP in construction? It is the collective name for the engineering systems that make a building usable: mechanical (air conditioning and ventilation), electrical, and plumbing. In Vietnam the same field is called cơ điện, literally "mechanical-electrical". People who ask "what is an MEP system" usually get stuck on two follow-up questions: which system belongs to which letter, and where fire protection fits. This article answers both, then covers the design steps under current Vietnamese law and where BIM MEP differs from 2D drawings.
To build these systems yourself on a computer, the Institute runs a Revit MEP course that takes one sample building from an empty model to a full drawing set.
What MEP stands for
The shortest answer to what is MEP in construction lies in three letters.
- M, Mechanical. Air conditioning, ventilation, and the chilled water pipework that serves the air conditioning.
- E, Electrical. Power, lighting, and low-voltage systems.
- P, Plumbing. Clean water in; waste water and rainwater out.
Each letter is a group, not a single system. The same field also goes by a few other names.
| Name | Short for | Difference |
|---|---|---|
| M&E | Mechanical & Electrical | Only two letters; water is not split out |
| MEP | Mechanical, Electrical, Plumbing | Water gets its own letter, P |
| MEPF | Mechanical, Electrical, Plumbing, Fire protection | Fire protection gets its own letter, F |
| Cơ điện | — | The Vietnamese term, as in kỹ sư cơ điện (MEP engineer) |
The names differ only in how many letters are split out. The real scope of an MEP package sits in each project's contract, so read the tender documents rather than the label.

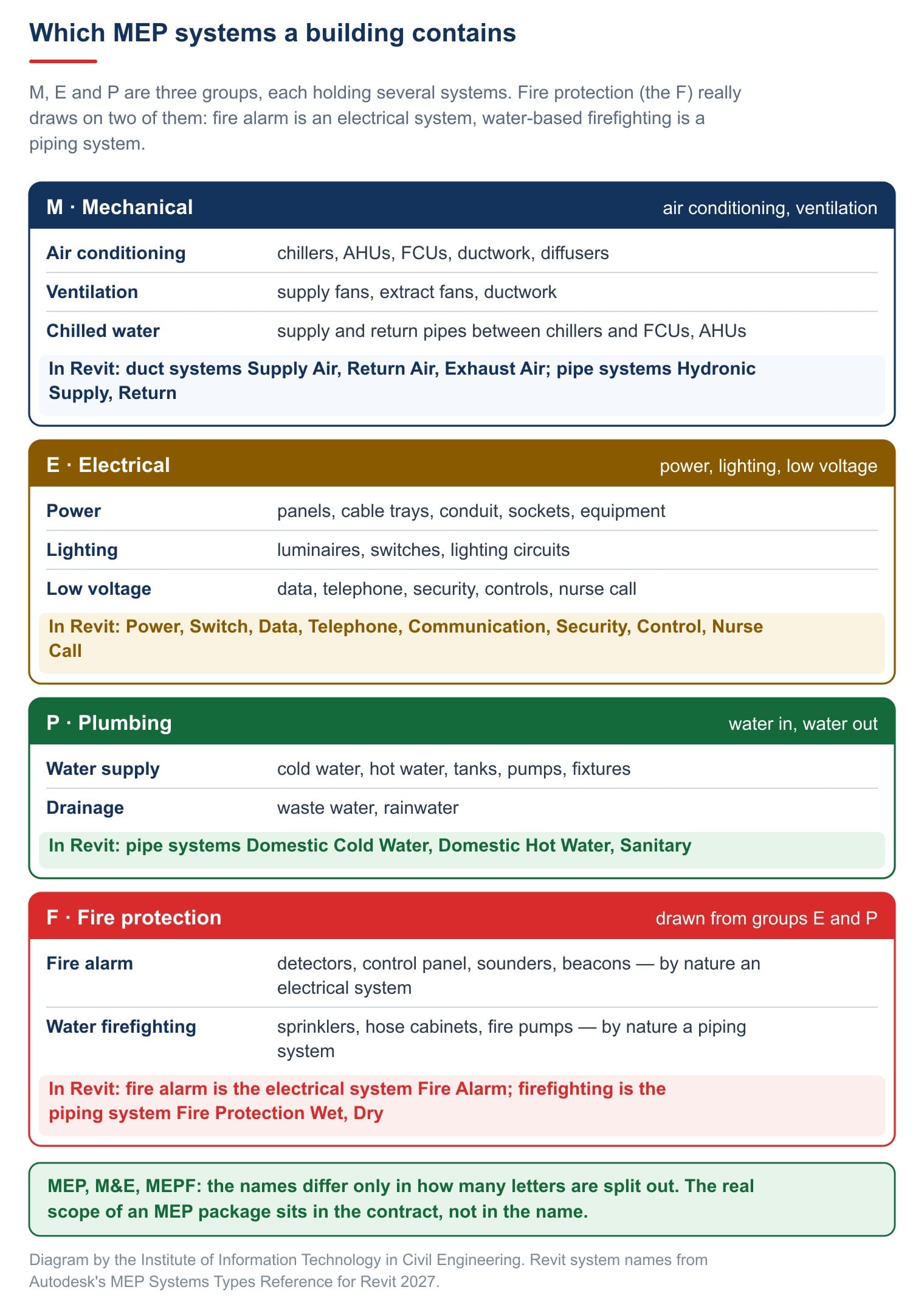

MEP systems in buildings: what they include
The table groups the systems found in a typical civil building into four groups. The last column is the name Revit gives that kind of system, taken from Autodesk's MEP Systems Types Reference for the 2027 release.
| Group | System | What it includes | Revit calls it |
|---|---|---|---|
| M | Air conditioning | Chillers, AHUs, FCUs, ductwork, diffusers | Supply Air, Return Air |
| M | Ventilation | Supply fans, extract fans, ductwork | Supply Air, Exhaust Air |
| M | Chilled water | Supply and return pipes between chillers and FCUs, AHUs | Hydronic Supply, Hydronic Return |
| E | Power | Panels, cable trays, conduit, sockets | Power |
| E | Lighting | Luminaires, switches, lighting circuits | Power, Switch |
| E | Low voltage | Data, telephone, security, controls | Data, Telephone, Security, Control, Communication |
| P | Water supply | Cold water, hot water, tanks, pumps, fixtures | Domestic Cold Water, Domestic Hot Water |
| P | Drainage | Waste water, rainwater | Sanitary |
| F | Fire alarm | Detectors, control panel, sounders, beacons | Fire Alarm (an electrical system) |
| F | Water firefighting | Sprinklers, hose cabinets, fire pumps | Fire Protection Wet, Fire Protection Dry (a piping system) |
Two points stand out. A group holds many systems: Revit's list of electrical system types alone has nine entries, including Fire Alarm and Nurse Call. And P does not simply mean "pipes": chilled water runs in pipes but belongs to the mechanical side, and Revit files it under Hydronic. Rainwater varies by project; the sample project Autodesk ships with Revit 2027 gives roof rainwater its own system, named Roof Drainage.
Fire protection in M, E or P: the F in MEPF
Introductions to MEP file fire protection in different places: some under mechanical, some under plumbing, some on its own. The reason is that fire protection is not one system but at least two, and they are different in kind.
Fire alarm consists of smoke and heat detectors, call points, sounders and beacons, and signal cabling back to a control panel. It is an electrical system.
Water firefighting consists of tanks, pumps, pipework, valves, sprinkler heads and hose cabinets. It is a piping system.
Revit classifies them exactly that way. Autodesk's 2027 reference lists Fire Alarm among the electrical systems, next to Power and Security. For pipework it states: "Pipe connectors are used with hydronic systems, plumbing systems, and fire protection systems", with fire protection types such as Fire Protection Wet and Fire Protection Dry.
Smoke extraction and stair pressurisation work the other way round. Their purpose is fire safety, but they are built from fans and ductwork, so in a model they are drawn with the duct tools like any ventilation system.
Why, then, do so many documents give fire protection its own F? Because that part of the design passes an extra checkpoint. Vietnam's Construction Law No. 135/2025/QH15 requires works subject to fire safety design appraisal to have their design verified for fire safety requirements (Article 26). For works in public investment projects, the owner's appraisal of the design developed after project approval includes an assessment of the fire safety solution (Article 30).
A part of the package that goes through one more gate is easier to manage under its own letter, and that letter makes MEPF. Either grouping works as long as a project uses one consistently. The practical point when assigning work: whoever models the fire alarm needs an electrical background, and whoever models the sprinklers needs pipe hydraulics, even though both sit in the fire protection package.

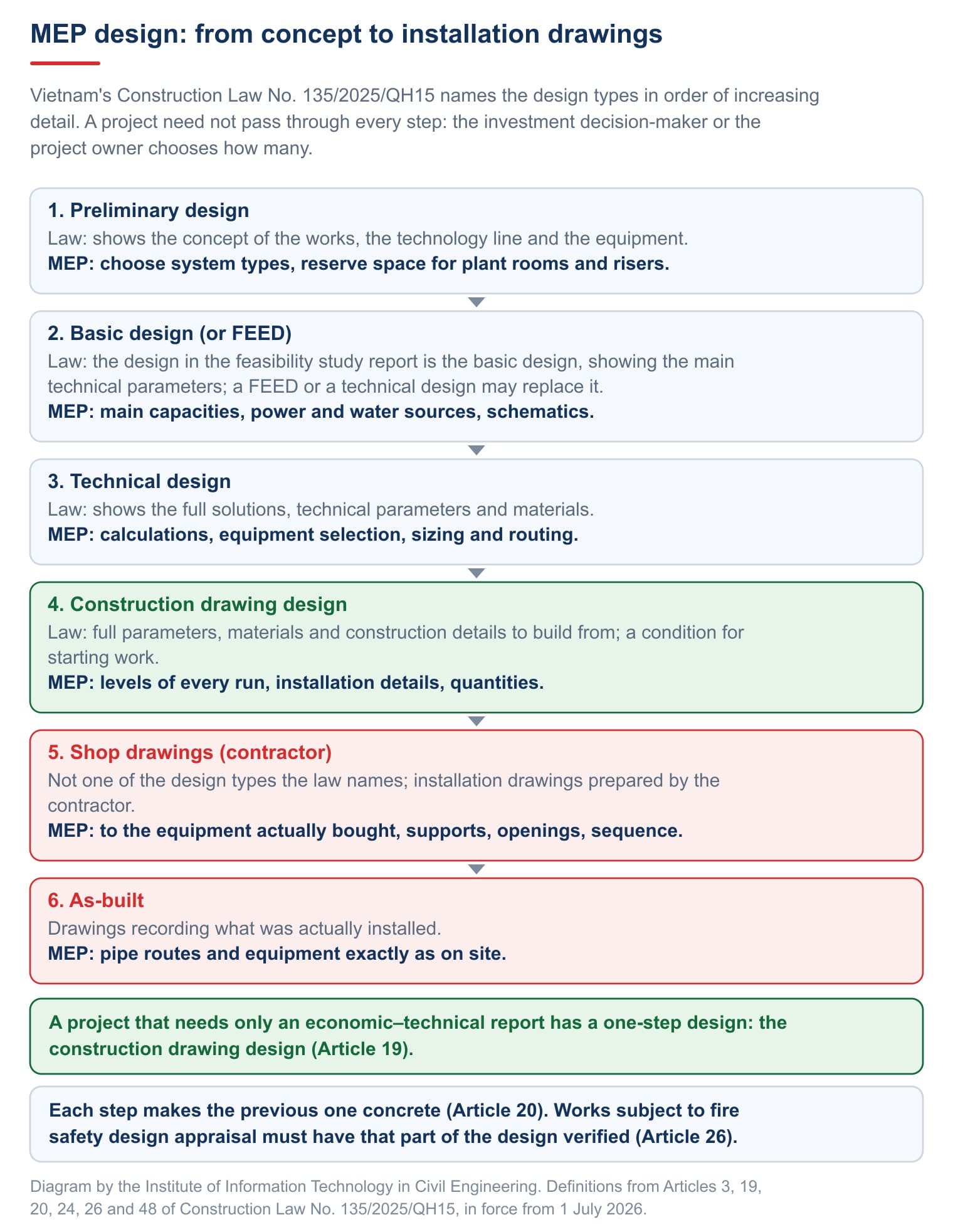

What is MEP design, and which steps does it follow
MEP design is the part of building design that deals with the systems above. The designer chooses a solution for each system, calculates cooling loads, electrical loads and water flows, selects equipment, then sizes and routes the pipes, ducts and cables. All of it ends up as a design package. MEP design does not run on its own; it follows the design steps of the whole project.
Since 1 July 2026 those steps have been governed by Construction Law No. 135/2025/QH15. Article 19 names five design types, plus "other designs (if any)". The law does not require every project to go through all five. The investment decision-maker sets the number of steps when the project is prepared, or the owner does so when the design is developed after approval.
| Design type | Legal definition (Article 3) | What the MEP side does |
|---|---|---|
| Preliminary design | Shows the concept of the works, the technology line and the equipment | Chooses system types, reserves space for plant rooms and risers |
| Basic design | Shows the main technical parameters in line with regulations and standards | Main capacities, power and water sources, schematics |
| FEED (front-end engineering design; the law also calls it overall technical design) | Prepared for projects with a technology design, setting out the technology solution and the parameters of process equipment | Follows the requirements of the process equipment |
| Technical design | Shows the full solutions, technical parameters and materials | Calculations, equipment selection, sizing and routing |
| Construction drawing design | Shows full parameters, materials and construction details, sufficient to build from | Levels of every run, installation details, quantities |
Three provisions are worth remembering on the MEP side.
- The design in the feasibility study report is the basic design, but the investment decision-maker may use a FEED or a technical design instead (Article 24).
- Each step makes the previous one concrete, and may be adjusted as long as the project's objectives and scale do not change (Article 20).
- A project that needs only an economic–technical report has a one-step design, the construction drawing design (Article 19). Apart from a few cases the law lists separately, construction of any part may start only when the construction drawing design for that part has been approved (Article 48).
After the construction drawing design, the work passes to the contractor. The contractor prepares shop drawings, the installation drawings based on the equipment actually purchased, and finally the as-built drawings that record what was installed. Both have their own article: MEP shop drawings.
What an MEP design package contains
The law divides a feasibility study report into an explanatory part and the construction design (Article 24). The MEP portion has both, plus the figures needed for the cost estimate.
- Design report and calculations. Design basis, the solution for each system, load results, reasons for equipment choices.
- Drawings. Split by discipline, usually one sheet per system per floor.
- Bills of quantities and equipment lists. The basis for the cost estimate and for procurement.
The drawing set of the sample project Autodesk ships with Revit 2027 shows a fairly even structure across the three disciplines. The building has seven levels, from the L0 car park to the roof, so each kind of plan repeats over six or seven sheets.
| Discipline | Sheet types in the sample set | Most characteristic sheet |
|---|---|---|
| Mechanical (HVAC) | Notes, symbols and schedules; HVAC plan per level; HVAC reflected ceiling plan per level | The ceiling plan, because ducts and diffusers sit above the ceiling |
| Plumbing | Sanitary plan per level; sanitary reflected ceiling plan; sanitary riser sections; domestic water plans | The riser sections, showing pipes rising through the floors |
| Electrical | Notes and symbols; conceptual power distribution; power plans; enlarged plans; lighting plans; panel schedules; photovoltaic panels; switchboard and meter banks | The panel schedules, listing every circuit and its load |
The sample set has no fire protection section. On a project with an F, the package adds sheets for the fire alarm and firefighting systems.
How BIM MEP differs from 2D MEP drawings
BIM MEP is not the name of a program. It is the MEP side done the BIM way: every pipe and every panel is an object with parameters, objects connect into systems, and drawings are extracted from the model. Revit is one tool for the job; the article What is Revit MEP covers the software itself and six things MEP engineers do with it.

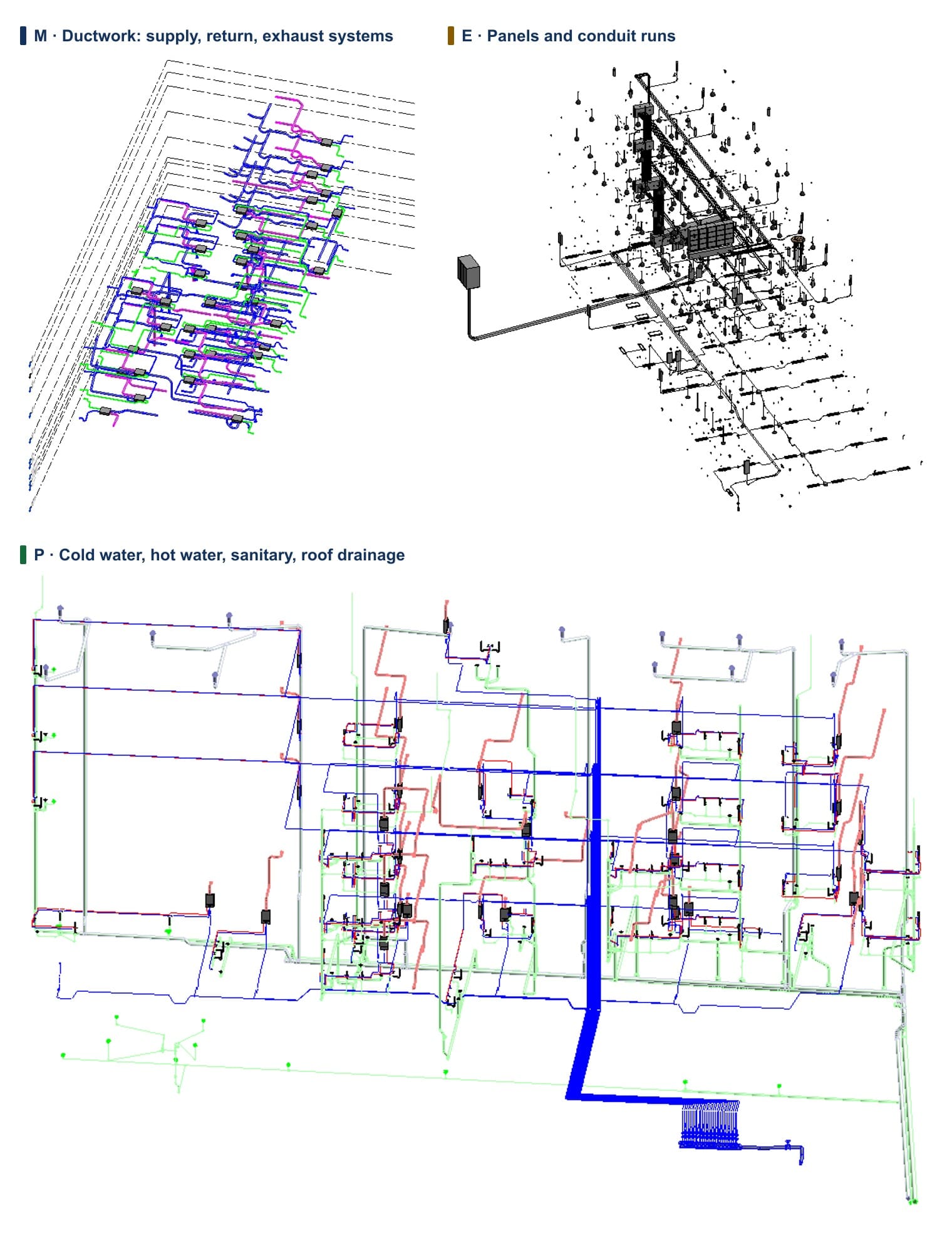

On real projects each discipline is usually a separate model, linked to the others. The image below shows the mechanical, plumbing and electrical models of the same building.
The differences show up task by task.
| Task | 2D drawing | BIM MEP model in Revit 2027 |
|---|---|---|
| A length of duct | Two parallel lines | An object with a section size and elevation, belonging to a system such as Supply Air |
| Knowing which system a device is on | Read the annotation | System Browser lists the systems and expands to every element |
| Finding open ends and unconnected devices | Scan by eye | Analyze tab: Check Duct Systems, Check Pipe Systems, Check Circuits, Show Disconnects |
| Clashes with beams or other systems | Overlay drawings and scan by eye | Collaborate › Coordinate › Interference Check |
| Panel schedules | Typed by hand | Panel Schedules generated from connected circuits |
| Rerouting a pipe | Edit every plan and section | Edit once in the model; every view updates |
For clash detection across many models and programs, coordinators usually combine them in Navisworks. Model detail also grows with the design stage and is described by LOD: a basic-design model does not need hangers, while a construction-drawing model must carry the level of every run.
Three things often stated wrongly about MEP
| What you often hear | What is actually the case |
|---|---|
| MEP is three systems: mechanical, electrical, plumbing | The three letters are three groups with many systems each; Revit's list of electrical system types alone has nine entries |
| Fire protection belongs to mechanical, or to plumbing | Fire alarm is an electrical system, water firefighting is a piping system; the F draws on groups E and P |
| Design has a fixed number of steps | Construction Law No. 135/2025/QH15 names five design types; each project's investment decision-maker or owner chooses the number of steps |
In short, what is MEP in construction comes down to three points. M, E and P are three groups of systems, and fire protection spans both electrical and piping, which is why it often gets its own F. MEP design follows the design steps of the whole project. BIM MEP means doing all of that on a model made of systems instead of on linework. For the order in which to learn it, continue with how to learn Revit MEP.
Frequently asked questions
Are M&E and MEP different?
They describe the same field; MEP simply gives water its own letter, P. The actual scope is always defined in the contract.
What is MEPF?
MEP plus F, for fire protection. The F covers the fire alarm system and the water firefighting system.
What does an MEP engineer do?
It depends on the seat: design consultant, contractor, owner or BIM team. The article MEP engineer goes through each role.
Does MEP design have to go through all five steps?
No. The investment decision-maker or the owner sets the number of steps for each project; a project that needs only an economic–technical report has a one-step design.
Where should I start with BIM MEP?
With the systems you will model, and only then the software. The learning path is in the article how to learn Revit MEP.
