Basic Revit Commands and Shortcuts by Discipline: Architecture, Structure, MEP

Basic Revit commands and shortcuts by discipline: architecture WA, DR; structure BM, CL, FT; MEP DT, PI, CT, plus a step-by-step 6 × 4 m room exercise.

  • TS. Nguyễn Mạnh Tuấn
  • 13 min read
A 6 × 4 m room built with six basic Revit 2027 commands: wall, door, window, floor, roof and room Photo: Screenshot of Revit 2027, sample model of the Institute of Information Technology in Civil Engineering

Basic Revit commands are split by discipline, one ribbon tab each: Architecture for architecture, Structure for structure and Systems for building services (MEP). Each command creates an element with a type and parameters, not a loose line as in AutoCAD.

This article groups each discipline's drawing commands into tables with their shortcuts and a link to the detailed guide, then works through a small room exercise. The full shortcut list is in Revit keyboard shortcuts. For training by discipline, see the Institute's Revit courses.

Revit commands list with shortcuts by discipline

Revit shortcuts are at least two keys typed in a row (Autodesk: Keyboard Shortcuts). Shared and architecture shortcuts were checked from the ribbon tooltips in Revit 2027.2. Structure and MEP shortcuts follow Autodesk's default shortcut list. "None" means Revit assigns no default key; you can add your own as shown in Revit keyboard shortcuts.

DisciplineRibbon tabTypical shortcuts
Shared by allArchitecture, Structure, SystemsLL, GR, RP, CM
ArchitectureArchitectureWA, DR, WN, RM, RT
StructureStructureBM, CL, BR, FT, SB
MEPSystemsDT, PI, CT, CN, ME, PX

Commands shared by all disciplines

CommandShortcutGuide
LevelLLgrids and levels
GridGRgrids and levels
Reference PlaneRPreference planes and lines
Place a ComponentCMgroups and furniture
Model LineLI2D detailing

Revit shortcut keys for architecture

CommandShortcutGuide
WallWAdrawing walls
DoorDRdoors and windows
WindowWNdoors and windows
FloorNonefloors
Roof by FootprintNoneroofs
CeilingNoneceilings
Curtain Grid, MullionNonecurtain walls
Stair, Railing, RampNonestairs
RoomRMrooms and areas
Tag RoomRTrooms and areas
Model In-Place, MassNonemodel in place, massing

The Wall button on the Architecture tab creates a non-bearing wall; its tooltip reads Creates a non-structural wall in the building model. The Column button on the Architecture tab defaults to Structural Column, so CL places a structural column; the architectural column is in the button's drop-down.

Revit structure shortcuts

CommandShortcutGuide
BeamBMbeams
Structural ColumnCLstructural columns
BraceBRbeams
Beam SystemBSbeams
Foundation: WallFTstrip footing family
Foundation: IsolatedNonepad footing family
Floor: StructuralSBstructural floors
RebarNonebeam reinforcement
Reinforcement NumbersRNrebar settings

Revit MEP shortcuts

SystemCommandShortcutGuide
HVACDuct, Duct Fitting, Duct AccessoryDT, DF, DAductwork
HVACFlex Duct, Convert to Flex DuctFD, CVductwork
HVACAir Terminal, Mechanical EquipmentAT, MEVRF and FCU
PlumbingPipe, Pipe Fitting, Pipe AccessoryPI, PF, PAwater pipes
PlumbingFlex Pipe, Plumbing FixtureFP, PXdrainage pipes
Fire protectionSprinklerSKfire protection
ElectricalCable Tray, Cable Tray FittingCT, TFcable trays
ElectricalConduit, Conduit FittingCN, NFcable trays
ElectricalElectrical Equipment, Lighting Fixture, Arc WireEE, LF, EWelectrical, lighting

Where the Revit drawing commands are

The Architecture tab groups the drawing commands into six panels.

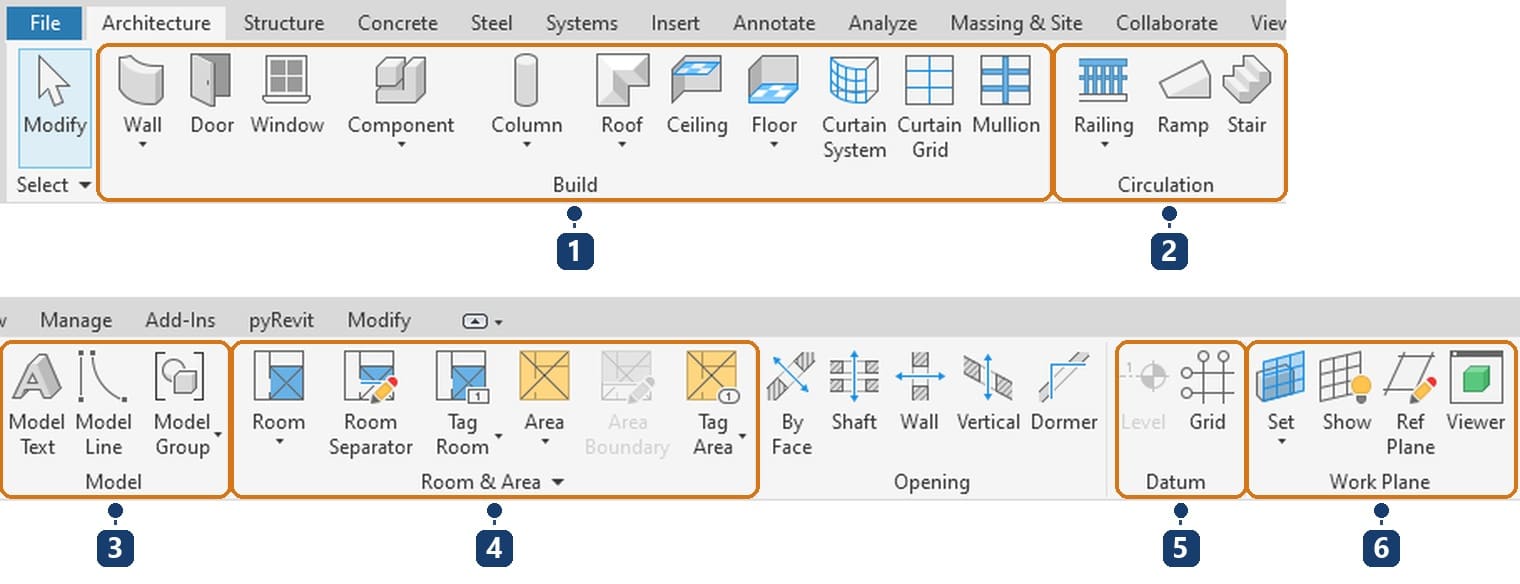

1 Build: walls, doors, components, columns, roofs, ceilings, floors, curtain walls. 2 Circulation: railings, ramps, stairs. 3 Model: model text, lines and groups. 4 Room & Area. 5 Datum: levels and grids. 6 Work Plane: work planes and reference planes Photo: Screenshot of Revit 2027

The Level button is greyed out because the screenshot was taken in a plan view. Revit draws levels only in an elevation or a section.

What every drawing command has in common

While a drawing command runs, Revit opens a green contextual tab such as Modify | Place Wall. In Revit 2027, the settings that used to sit on the Options Bar have moved onto this tab.

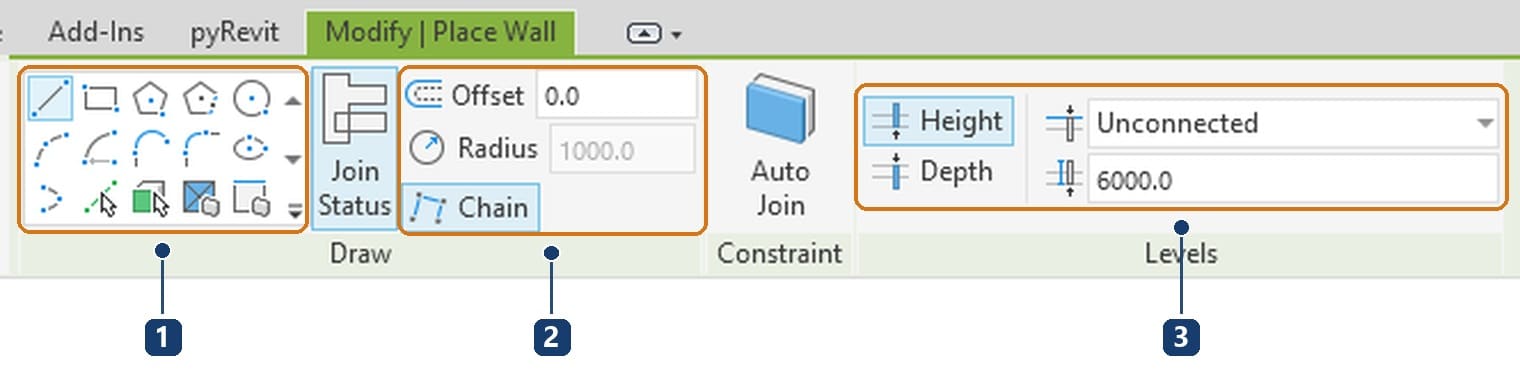

1 Draw panel: Line, Rectangle, polygons, circle, arcs, Pick Lines. 2 Offset, Radius and Chain. 3 wall height: Height, the top level, and the height used when Unconnected is chosen Photo: Screenshot of Revit 2027

Four actions work for most drawing commands:

  1. Pick a shape on the Draw panel: Line for segments, Rectangle for a rectangle, Pick Lines to follow existing lines.
  2. Type a length: click the start point, move the cursor in the drawing direction, type the length and press Enter.
  3. Flip: press Space while drawing or placing to flip the element.
  4. Finish: press Esc once to stop the current segment, twice to leave the command.

Pressing Tab while hovering over a wall also selects the whole chain of connected walls. This is used a lot with floors and roofs.

Architecture exercise: build a 6 × 4 m room with 6 commands

The exercise uses the Metric Multi-discipline template of Revit 2027. It already has levels L1 and L2 and the L1 - Architectural plan.

Step 1. Walls with Wall (WA)

  1. Open the L1 - Architectural plan.
  2. Click Architecture › Wall, or type WA.
  3. On the Levels panel, change Unconnected to L2. The walls will run from L1 to L2, 3600 mm.
  4. Pick Line and keep Chain on.
  5. Click the start point. Move the cursor right, type 6000, press Enter.
  6. Move the cursor up, type 4000, press Enter.
  7. Move the cursor left, type 6000, press Enter.
  8. Move the cursor down, type 4000, press Enter. The four walls close.
  9. Press Esc twice.

If you skip step 3, the walls default to 6000 mm and are not tied to any level. When the storey height changes, those walls do not follow.

Step 2. A door with Door (DR)

  1. Click Architecture › Door, or type DR.
  2. Hover over the bottom wall. Revit shows a door preview and two temporary dimensions to the wall ends.
  3. Press Space to flip the hinge side if needed.
  4. Click to place the door. Press Esc twice.

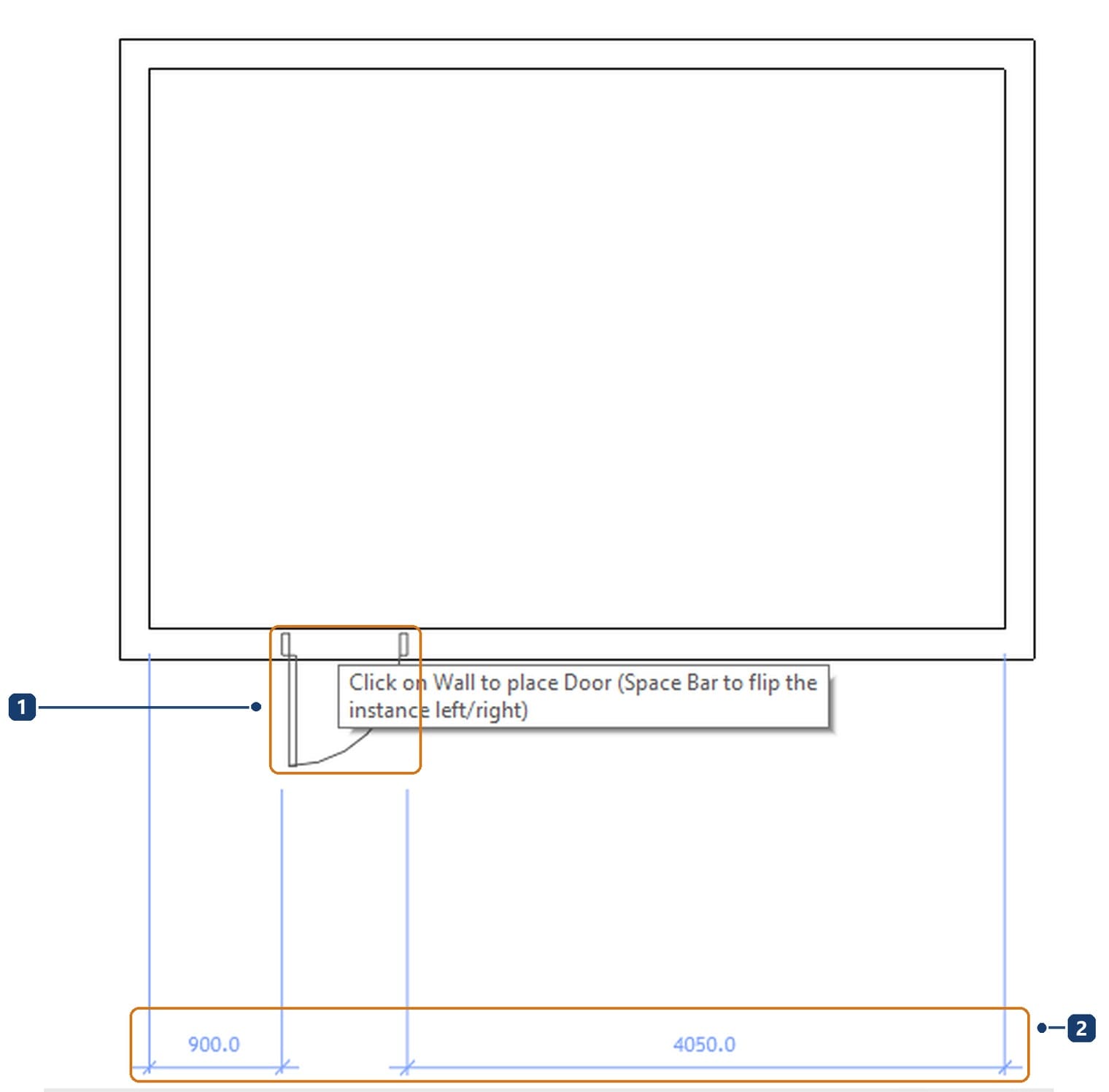

1 the door preview while hovering over the wall. 2 temporary dimensions from the door to the two wall ends Photo: Screenshot of Revit 2027

Doors can only be placed on walls. Revit's prompt reads: Click on Wall to place Door (Space Bar to flip the instance left/right).

Step 3. Windows with Window (WN)

  1. Click Architecture › Window, or type WN.
  2. Click the top wall to place the first window.
  3. Click the right wall to place the second window.
  4. Press Esc twice.

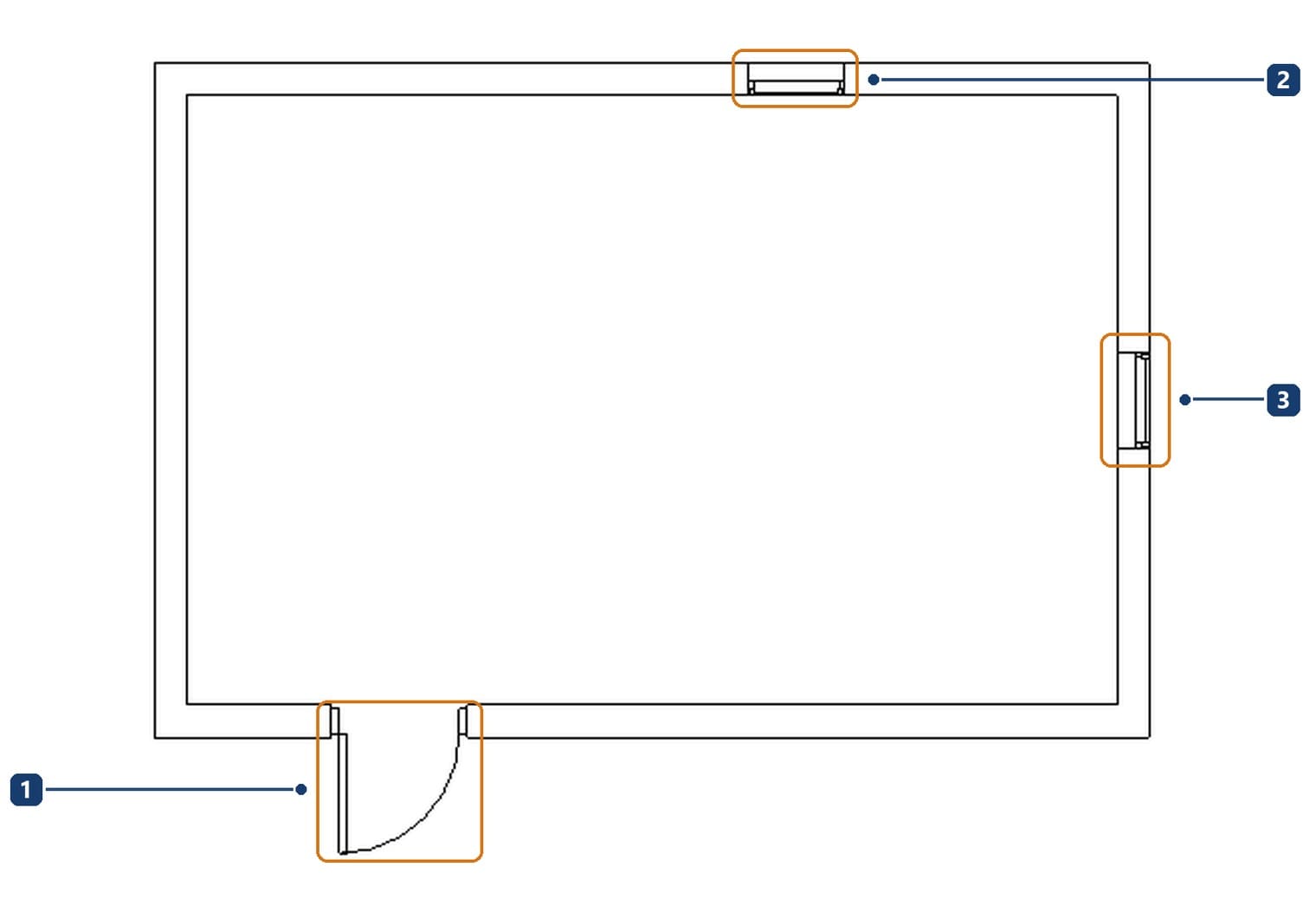

1 the door in the bottom wall. 2 a window in the top wall. 3 a window in the right wall Photo: Screenshot of Revit 2027

Step 4. A floor with Floor

Floor has no default shortcut.

  1. Click Architecture › Floor. Revit enters the Modify | Create Floor Boundary sketch, with Pick Walls as the default tool.
  2. Hover over a wall and press Tab. All four walls highlight and the tooltip reads Chain of walls or lines.
  3. Click. Revit creates the floor boundary along the whole chain.
  4. Click the green tick Finish Edit Mode on the Mode panel.

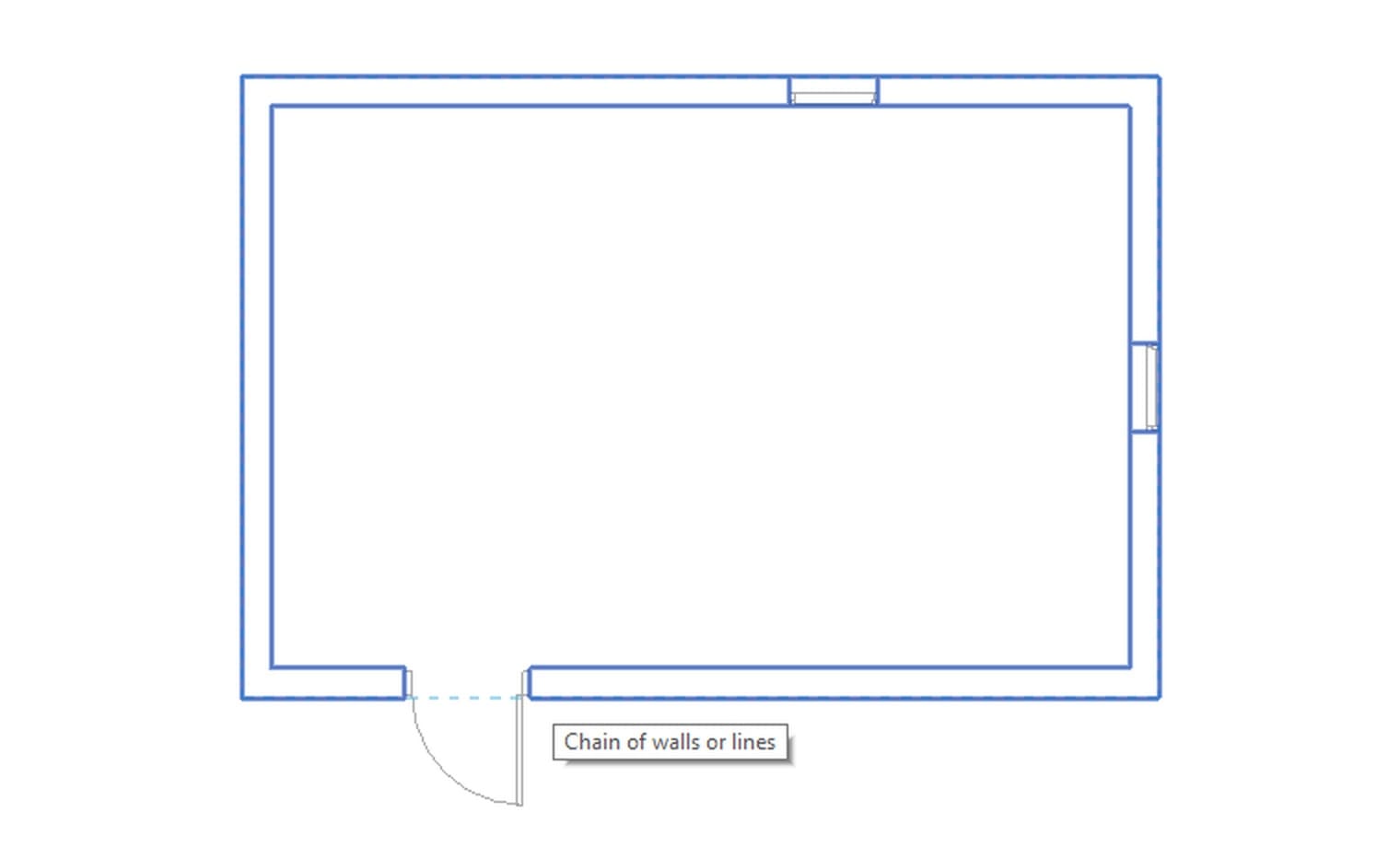

Pressing Tab while hovering over a wall selects the whole chain of walls for the floor boundary Photo: Screenshot of Revit 2027

The floor in the example is 26.04 m², or 6.2 × 4.2 m. The reason: Extend Into Wall is on, so the boundary sits on the outer face of the walls, not on their centrelines.

Step 5. A roof with Roof by Footprint

  1. Open the L2 - Architectural plan. The roof is placed at the level of the open plan.
  2. Click Architecture › Roof. The default is Roof by Footprint.
  3. Turn on Extend Into Wall and type 500 in Overhang, so the roof projects 500 mm beyond the wall face.
  4. Hover over a wall, press Tab, and click to pick the whole chain.
  5. Click Finish Edit Mode.

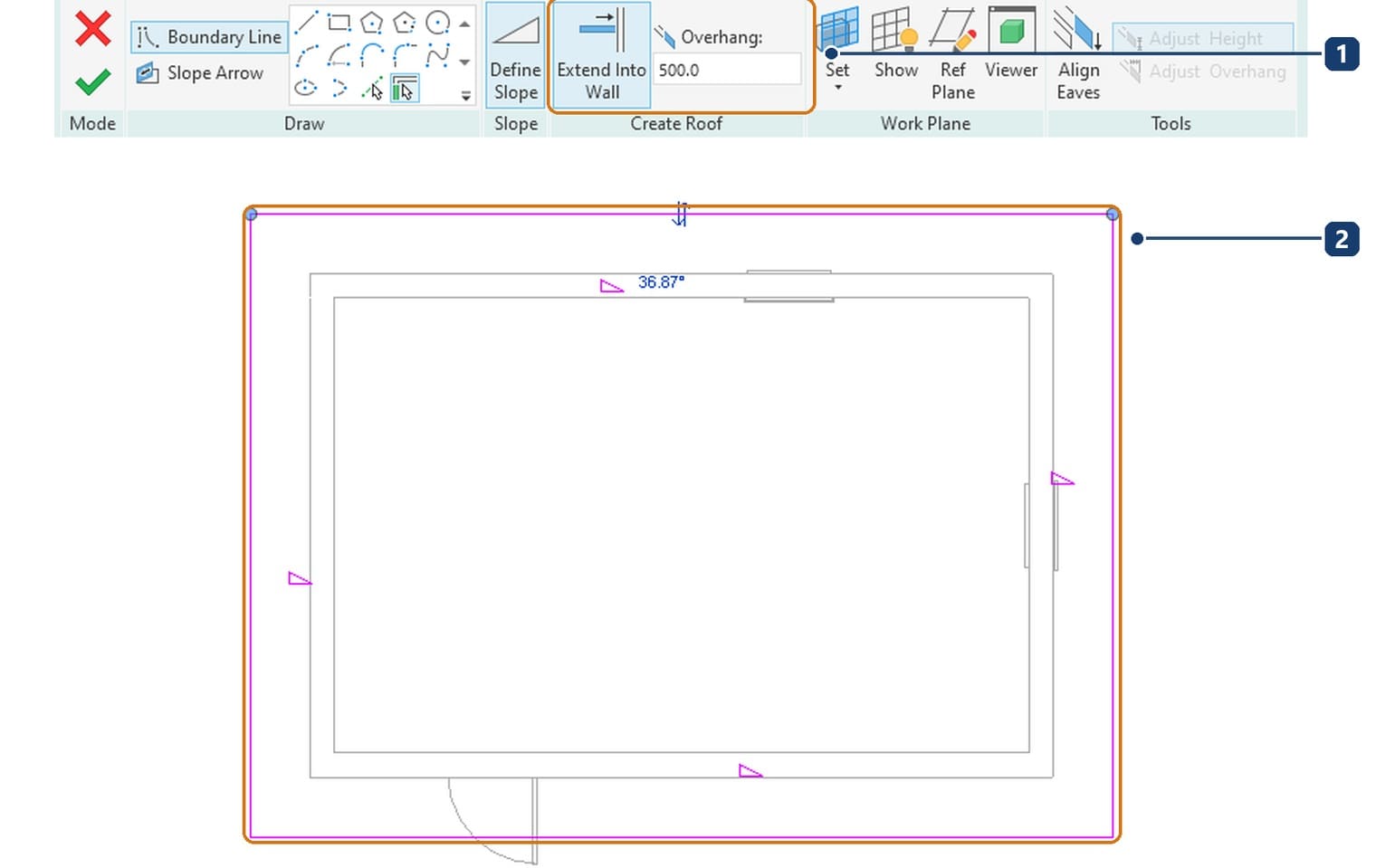

1 Extend Into Wall and Overhang 500. 2 the roof boundary 500 mm outside the walls, each edge marked with a 36.87° slope symbol Photo: Screenshot of Revit 2027

Each boundary edge carries a triangle, meaning that edge defines a slope. Four sloped edges give a hip roof. For a gable roof, select the two gable-end edges and turn off Define Slope on the Slope panel. More detail is in roofs in Revit.

Step 6. A room with Room (RM)

  1. Go back to the L1 - Architectural plan.
  2. Click Architecture › Room, or type RM.
  3. Move the cursor inside the room. Revit detects the enclosed area and shows a crossed preview.
  4. Click to place the room. Press Esc twice.

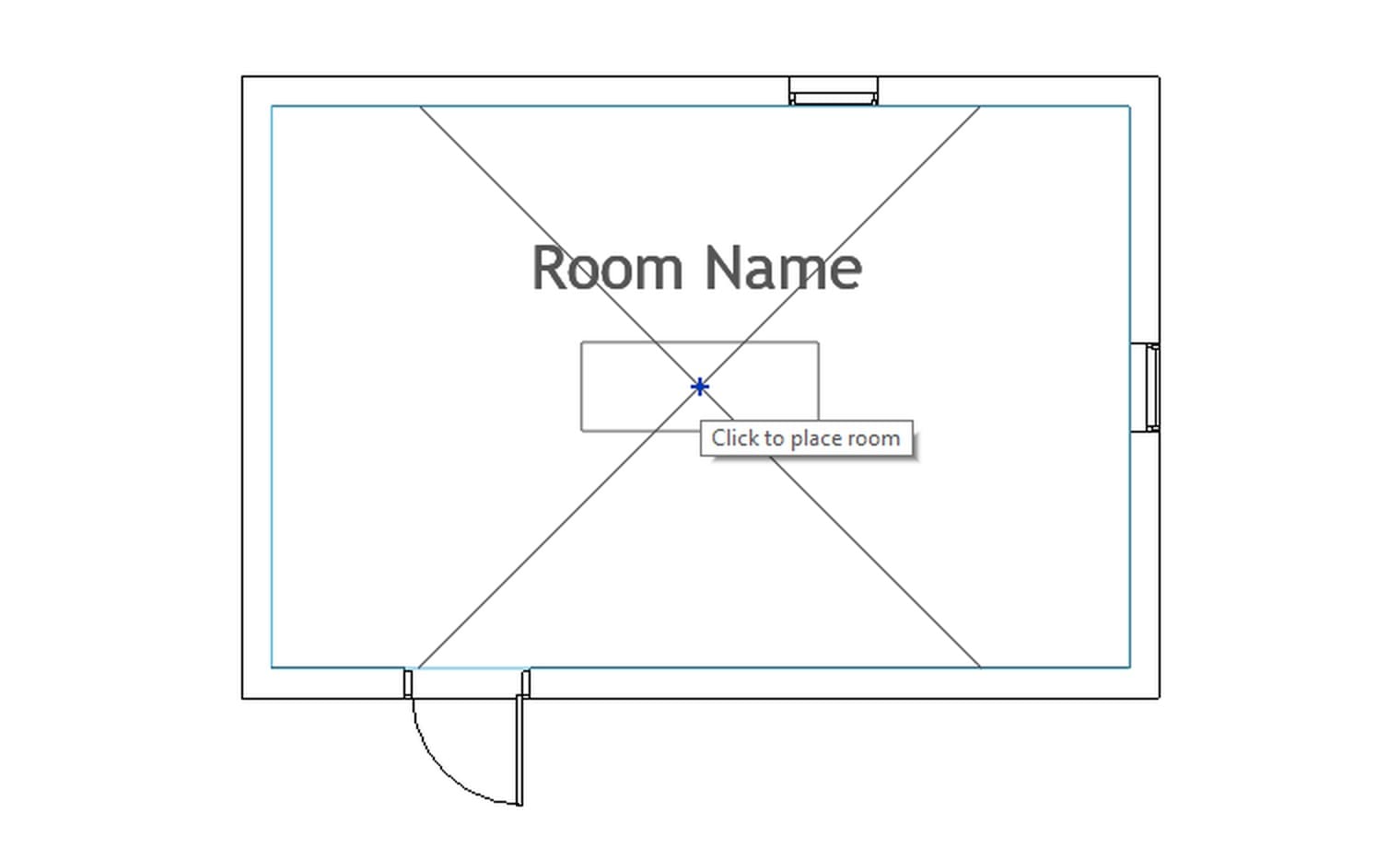

The Room tool detects the area enclosed by the four walls and shows the tooltip Click to place room Photo: Screenshot of Revit 2027

The room carries a name, a number and an area measured to the inner wall faces. Renaming, colour schemes and area schedules are covered in room areas in Revit.

Result

Click Default 3D View on the Quick Access Toolbar to see the model. Orbiting is covered in Revit 3D view.

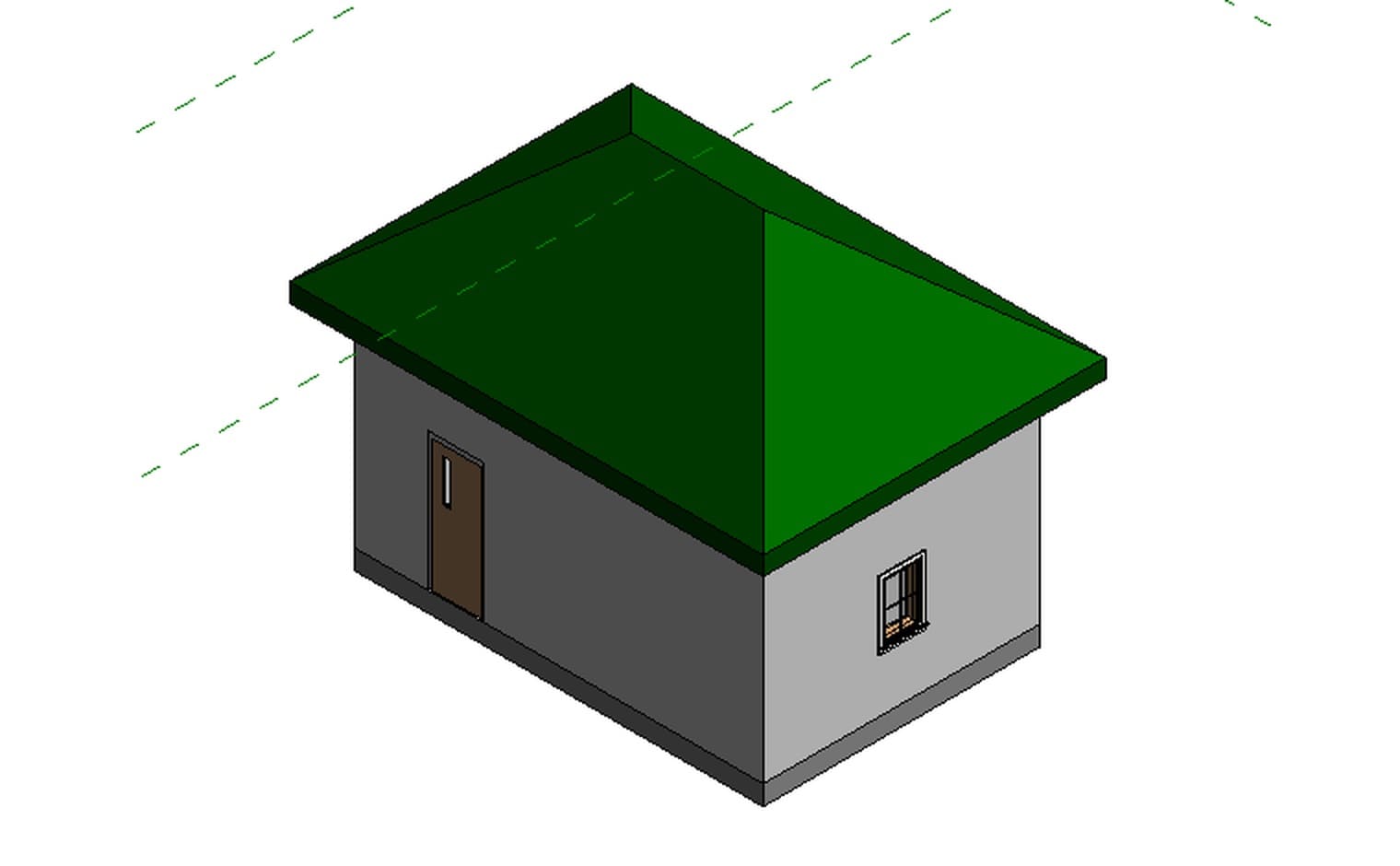

The result after six steps: four walls, a door, two windows, a floor and a hip roof, in the Shaded visual style Photo: Screenshot of Revit 2027, sample model of the Institute of Information Technology in Civil Engineering

Revit modify commands shared by all three disciplines

Drawing commands create elements; the commands on the Modify tab change their position and shape. These are the second most used Revit shortcut keys for architecture, after the drawing commands.

CommandShortcutUsed toDetailed guide
AlignALLine elements up with a referencemassing
MoveMVMove elementscopy and edit
CopyCO, CCCopycopy and edit
RotateRORotatecopy and edit
Mirror - Pick AxisMMMirror about an existing axiscopy and edit
OffsetOFOffset by a distancewalls
ArrayARRepeat in a rowcopy and edit
Trim/Extend to CornerTRTrim or extend two elements to a cornertrim/extend
Split ElementSLSplit an elementtrim/extend
PinPNPin against accidental movesgrids and levels
DeleteDEDelete

Dimensions and annotation use DI (Aligned Dimension), TG (Tag by Category) and TX (Text). See dimensions in Revit and tags in Revit.

Common problems

SymptomCauseFix
Typing WA gives a Vietnamese letterA Vietnamese Telex input method is onSwitch the keyboard to English before typing shortcuts
The Level button is greyed outYou are in a plan viewOpen an elevation or section and draw the level there
Walls are 6000 mm tall and ignore the storeysUnconnected left as defaultChoose a top level, such as L2, before drawing
A door will not placeThe click is off the wallHover over the wall until the door preview appears
The roof sits inside the wallsExtend Into Wall off, Overhang 0Turn on Extend Into Wall and enter the overhang
Floor area is larger than room areaThe floor reaches the outer wall face, the room the inner faceThis is correct; take usable area from the Room

Frequently asked questions

What are the basic Revit commands?

The most used are Level, Grid, Wall, Door, Window, Floor, Roof, Column, Stair and Room. Most are on the Architecture tab; Grid and Level are on the Datum panel.

Why do Floor and Roof have no shortcut?

Revit 2027 assigns no default key to them. You can assign one in the Keyboard Shortcuts dialog, opened with KS.

How are Revit drawing commands different from AutoCAD?

AutoCAD draws lines; Revit places elements. A Revit wall already has a thickness, a height and materials, and shows correctly in every plan, elevation and section.

In what order should beginners learn the basic commands?

In the order a building is modelled: levels and grids, walls, doors, floors, roofs, stairs, then rooms and dimensions. Free Revit self-study materials lists the guides in this order.

In short, basic Revit commands live on the Architecture tab and share one way of working: pick a shape on the Draw panel, type lengths, use Tab to pick chains and Esc to leave. Only some commands have default shortcuts, so remember the main ones: WA, DR, WN, GR, RM, CL.
